Injector Dynamics for 2JZ: ID1050x vs ID1300 vs ID2600

The 2JZ-GTE is an injector-sensitive engine. The factory 440cc units are good to roughly 420–450whp on a built motor — after that, you're leaning out on boost and your tune starts lying to you. Getting the injector sizing right the first time saves you a re-tune, a potential lean condition, and the frustration of pulling the fuel rail twice.

Injector Dynamics is the benchmark in this space. Their ID1050x, ID1300, and ID2600 each hit a specific power band, and knowing which one your build actually needs comes down to your power target, fuel type, and how much headroom you want in your tune.

Injector Dynamics ID1050x for 2JZ

The ID1050x is the most popular 2JZ injector choice for street-to-mild-track builds. At 1,050cc nominal flow rate at 3 bar, they support power targets in the 600–850whp range on E85 or up to roughly 700whp on pump 93 octane with a built block.

Specs:

• Flow rate: 1,050cc/min at 3 bar / 43.5 psi
• Compatible fuels: Gasoline, E85, methanol blends
• Drop-in for stock 2JZ fuel rail — no spacers required
• Plug & Play adaptor harness available for factory ECU fitment

Single-turbo street builds targeting 600–800whp on E85 are the ID1050x's sweet spot. Running a T51R Kai, a BorgWarner EFR 9180, or a Garrett G30-900 on a built 3.0L block? The 1050x sits right in your window with headroom to spare.

Injector Dynamics ID1300 for 2JZ

The ID1300 is the 2JZ enthusiast's "buy once, don't regret it" injector. At 1,300cc, they cover everything from a modest single-turbo street car all the way to 1,000whp on E85. This is the injector we most often recommend for serious 2JZ builds that have room to grow.

Specs:

• Flow rate: 1,300cc/min at 3 bar / 43.5 psi
• Compatible fuels: Gasoline, E85, methanol blends

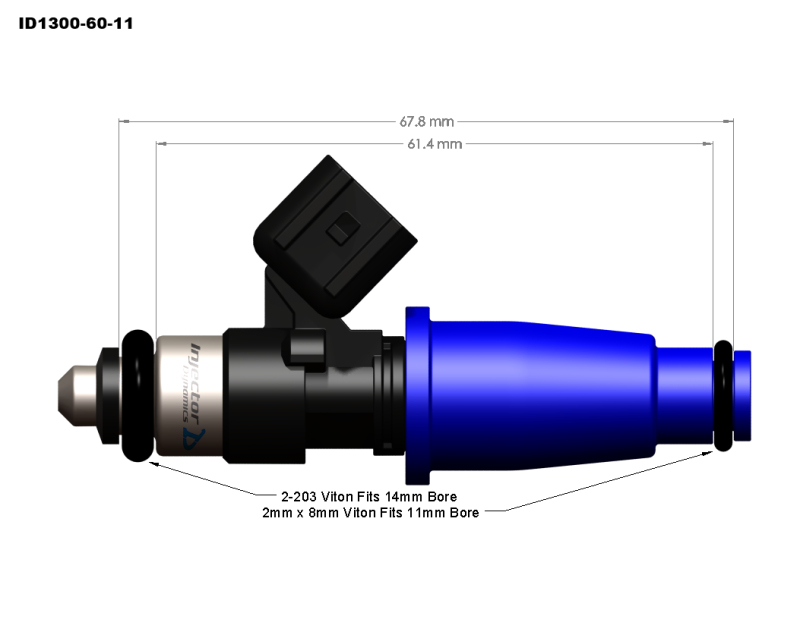

• Same body dimensions as ID1050x — fits stock 2JZ fuel rail

Builds in the 700–1,050whp range on E85 are the ID1300's home turf. Running a Precision 7675 or 7285, Garrett G42-1200, or anything in that tier? The ID1300 gives you proper tuning latitude without the idle quality penalty that larger injectors sometimes introduce. A 3.2L or 3.4L stroked 2JZ on E85 targeting 900–1,000whp lives exactly here.

Injector Dynamics ID2600 for 2JZ

The ID2000 is a big injector for a big build. At 2,600cc, they target builds going after 1,200–1,500whp+, typically on dedicated race fuel or high methanol content.

Specs:

• Flow rate: 2,600cc/min at 3 bar / 43.5 psi
• Compatible fuels: Gasoline, E85, methanol, racing fuel blends
• May require upgraded fuel rail for proper fitment on some setups

All-out builds running 98mm+ turbos, a 3.4L+ stroker kit, and targeting 1,400–1,500whp on methanol or E98 need the ID2600's margin. These are also common in drag-only setups where idle quality is secondary. One trade-off: at idle and light throttle, a 2,600cc injector on a street-tuned 2JZ can sometimes produce rough idle characteristics because minimum pulse width is harder to control precisely — but a solid tuner can easily handle this on today's standalone engine management systems like Haltech, ECUMaster, and MoTeC.

Which Injector Dynamics Injector Is Right for Your 2JZ Build?

The safest rule: size up, not down. Running a slightly larger injector at 75–85% duty cycle is healthier than running a smaller injector at 98% trying to keep fuel pressure stable. The ID1300 is the correct choice for any build that might grow.

Frequently Asked Questions

Do I need a new fuel rail for ID1050x or ID1300 injectors?

Not necessarily. Both retain the same O-ring size and body dimensions as the factory 2JZ injectors, so they drop into the stock fuel rail without modification. If you're running ID2600s or pushing significant flow on a large single, a return-style upgraded fuel rail is a worthwhile addition for consistent fuel pressure across all six cylinders.

What fuel pump should I pair with Injector Dynamics 2JZ injectors?

A single Walbro 525 or Bosch 044 handles the ID1050x and ID1300 comfortably, but we recommend a dual setup. For ID2600s on E85 or methanol, a dual-pump or triple pump setup — two/three Walbro 525s or a single large-flow unit like a Weldon 2025 — is the correct configuration.

Do I need to re-tune after installing Injector Dynamics injectors?

Yes, always. Injector Dynamics provides comprehensive characterization data — dead times, flow rates at multiple pressure points — which your tuner enters into the ECU. Without a re-tune, your air-fuel ratio will be unreliable regardless of injector quality. Also a good tuner will tune your injector pressure differential for maximum safety!

Are Injector Dynamics injectors compatible with stock ECU?

They fit the stock 2JZ fuel rail and connector (with the appropriate adaptor harness), but the stock ECU will need to be reflashed or replaced with a standalone unit to properly characterize the new injectors. Most 2JZ builds running ID injectors are already running Haltech, MoTeC, or ECUMaster standalone ECUs.
