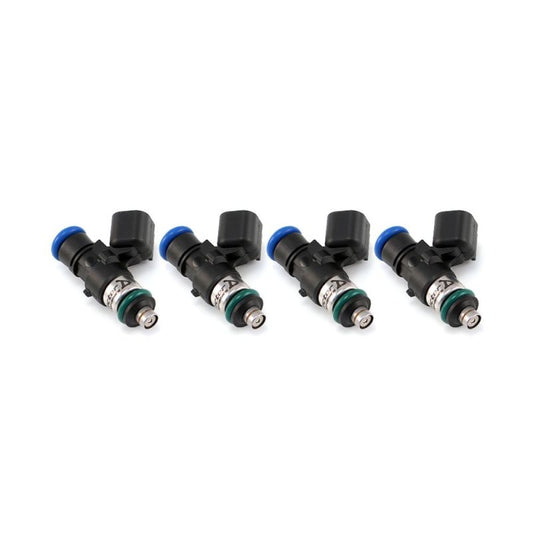

Collection: Injector Dynamics Collection

Injector Dynamics produces the most precisely characterized fuel injectors available in the aftermarket. Unlike conventional injectors rated at a single nominal flow number, every ID injector is individually tested and provided with complete characterization data — static flow rate, dead time compensation at multiple voltages, and short-pulse adder corrections — that maps directly into the fuel tables of all major standalone ECU platforms including Haltech, Link, MoTeC, AEM, and ECUMaster. The result is accurate fuel delivery from the first startup, with no empirical injector compensation required.

Injector Dynamics Models for JDM Performance Builds

• ID1050x — 1,050cc/min at 3.0 bar. The most widely used injector for 2JZ-GTE and RB26DETT builds targeting 500–700whp on pump fuel. The "x" designation reflects extended linearity characterization — critical for accurate fuel delivery at low duty cycles, which directly affects streetability and cold-start behavior.
• ID1300x — 1,300cc/min at 3.0 bar. For builds in the 700–900whp range on gasoline, or 600–800whp on E85. Steps up capacity without requiring a jump to a larger injector body in most applications.
• ID2000 — 2,000cc/min at 3.0 bar. Covers 900whp+ on gasoline or 700whp+ on E85. Available in top-feed and side-feed configurations, making it compatible with SR20DET, 13B-REW, and other platforms requiring side-feed injectors.
• ID2600-XDS — 2,600cc/min at 3.0 bar. For maximum-flow E85 builds and dual-injection setups. The XDS (extended dynamic range) rating indicates usability at idle and light throttle without the lean stumble associated with oversized injectors.

Why Characterization Data Changes the Tune

Most aftermarket injectors come with a flow number. Injector Dynamics provides voltage-corrected dead time tables and short-pulse width adder data for every injector — data that standalone ECU manufacturers incorporate directly into their fuel compensation algorithms. A tune built with complete ID characterization data has measurably more accurate fuel control at every operating condition: cold start, idle, transient throttle, and peak power. This is the difference between a tune that requires injector fudge factors to hold AFR and one that runs accurately from the data sheet forward.

J-Spec Garage stocks Injector Dynamics with our price match guarantee and fast US shipping. For 2JZ-GTE builds, pair with the complete 2JZ parts catalog. For FD3S RX-7 applications, see the Mazda RX-7 engine parts collection.

Choosing the right injector for your 2JZ? Read the Injector Dynamics for 2JZ: ID1050X vs 1340cc vs 2600-XDS Guide — power targets and adapter configurations broken down for every build tier.
