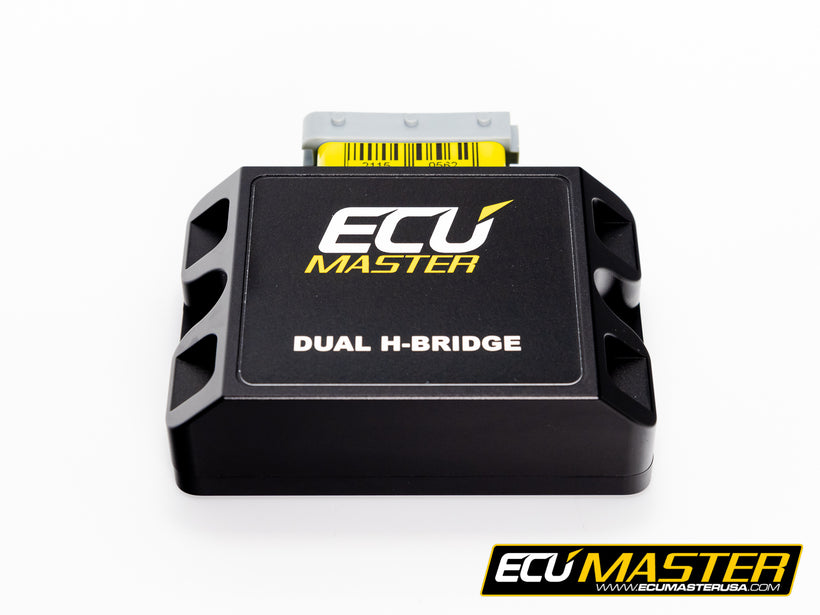

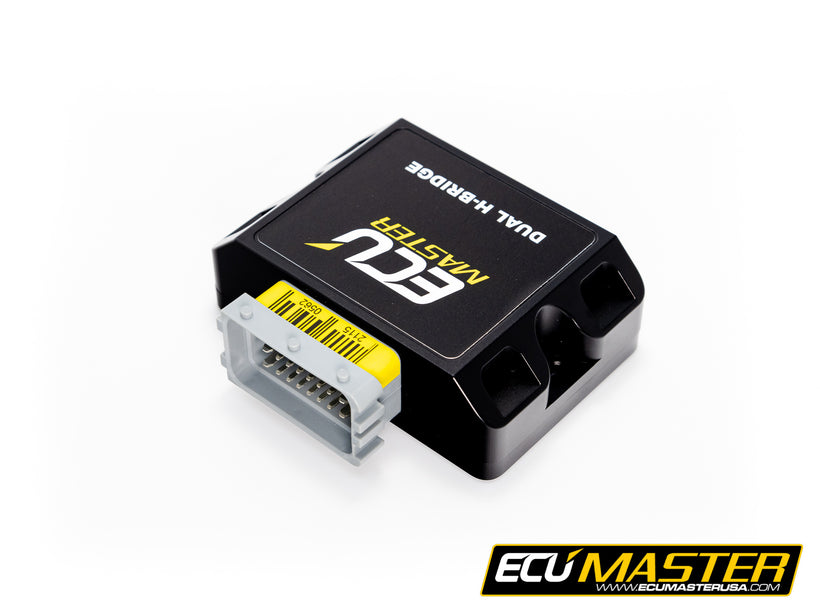

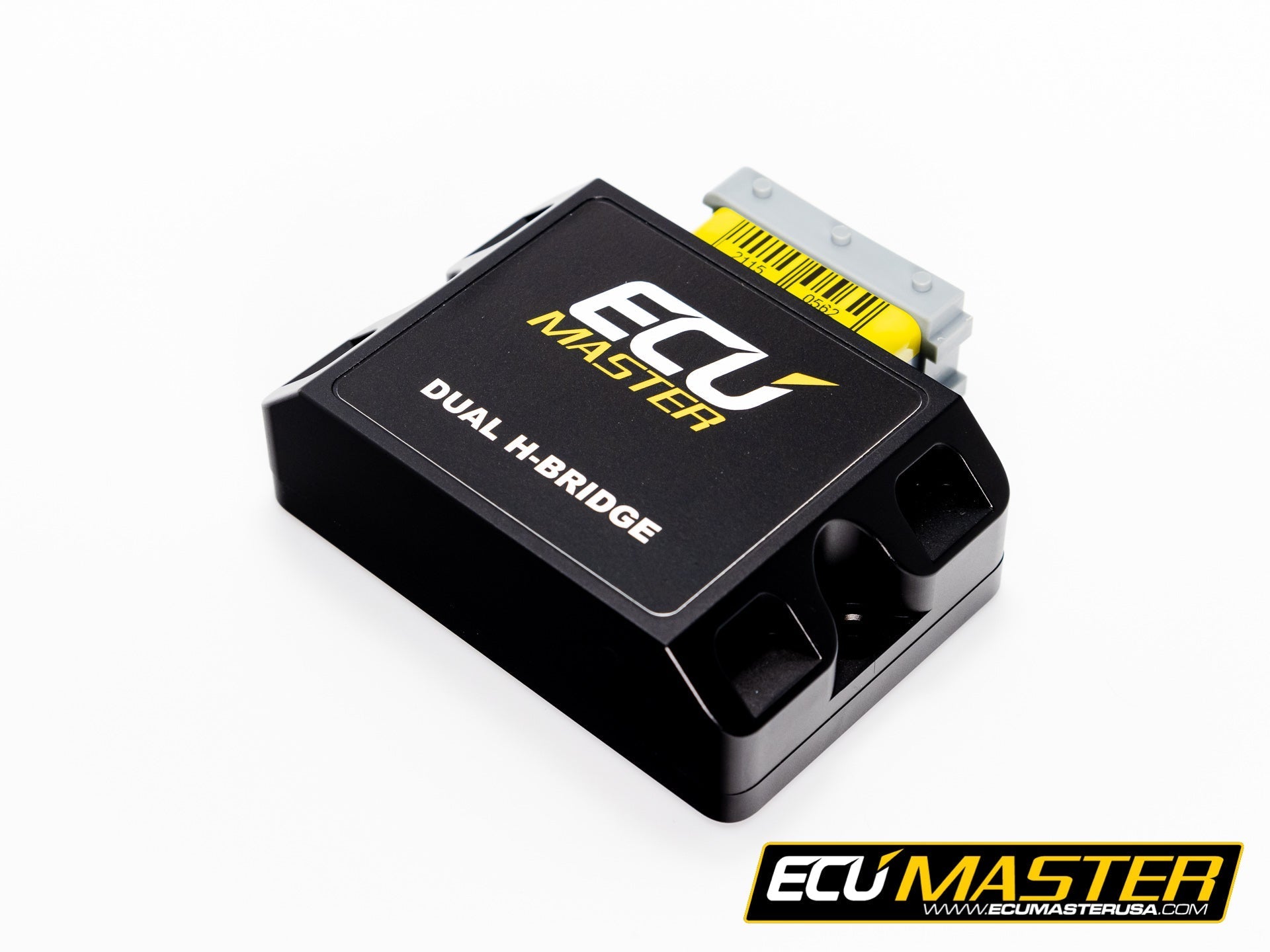

Dual H-Bridge Module

The Dual H-Bridge Module is designed for advanced motor control applications and supports high-performance tuning.

Features:
- Provides dual independent H-Bridge control
- Supports high power outputs
- Designed for automotive applications

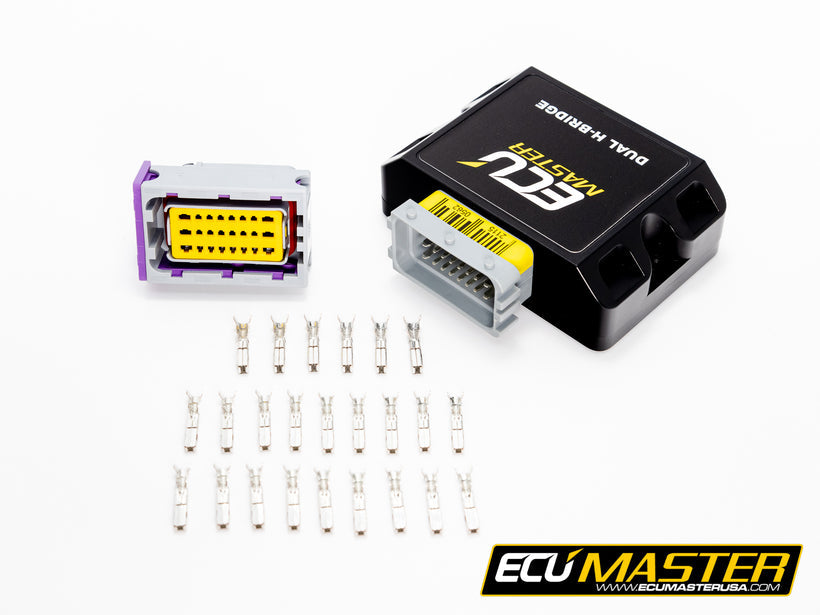

The CAN H-Bridge device contains two independent H-Bridges with over-current and short circuit protection, capable of 10A continuous current and 30A peak current. H-Bridges can be controlled via device inputs or CAN bus messages. Voltage range: 6V - 28V (12V and 24V automotive installations) Output current: 10A continuous, 30A peak 4 analogue (0-5V) / digital (35Hz - 200Hz PWM) inputs Output PWM: 12bit 3.9kHz The CAN H-Bridge device can be used to supply protected low side (GND) or high side (VBat) supply independently to each of 4 outputs for bidirectional DC motor control. Low side outputs can be PWM modulated on per-bridge basis. Common use cases are: Power windows High current electronic throttle body amplifier The dual H-Bridge device must be programmed using a CAN interface. The ECUMaster USB to CAN, Kvaser, or Peak PCAN may be used. What's in the box? Can H-Bridge Module 24 Position connector with terminals
