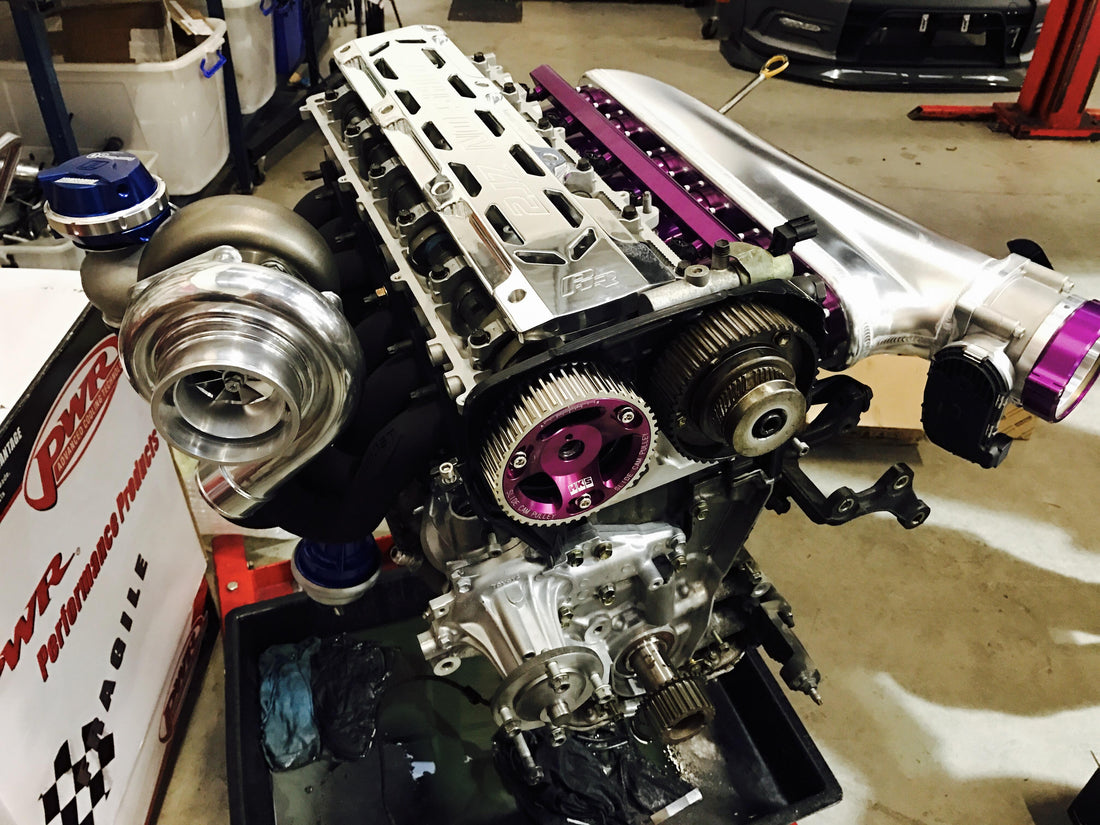

The Complete 2JZ-GTE Build Guide: Parts, Turbos & Power Goals

The 2JZ-GTE is the gold standard for JDM engine builds — not because of hype, but because of what is actually inside: a closed-deck iron block, factory-forged internals, and a twin-cam head that makes power cleanly from 5,000 RPM to redline. On stock internals, builders consistently hit 500–600whp. Push it further with the right parts and 800–1,000hp is achievable on a built motor.

This guide covers everything you need to build the 2JZ-GTE — from strengthening the block to selecting the right turbo, fuel system, and ECU — organized by power target so you only buy what your build actually needs.

Who This Build Is For

Targeting 400–500whp on a street car? A single-turbo conversion on a healthy stock bottom end with supporting mods gets you there. Building for 800–1,000whp for track or drag? You need a full bottom-end build with forged pistons, rods, and bearings. This guide covers both — upgrades are flagged by power tier throughout.

Engine Foundation: Block and Internals

The 2JZ-GTE's factory forged internals are exceptional, but they have limits. OEM pistons were not designed for the cylinder pressures that come with 35+ PSI of boost, and OEM rod bolts are the first failure point at high power.

Stock bottom end ceiling: 550–600whp with proper tuning on a healthy engine. Beyond that, you are taking a real risk.

600–800whp builds — minimum required upgrades:

• ARP rod bolts — ARP 2000 or Custom Age 625+. Stock bolts stretch under high-boost cylinder pressure. Non-negotiable on any power build.
• Bearings — ACL Race or King XP bearings at correct clearance for your power level and oil viscosity.
• Piston rings — quality gapless rings for better cylinder sealing under pressure.

800hp+ builds — full build required:

• Forged pistons — Brian Crower or CP Pistons at 8.0:1–8.5:1 compression for high-boost E85 builds. Shop Brian Crower 2JZ internals at J-Spec Garage.
• Forged connecting rods — Brian Crower ProH625+ rods or ProH2K rods — both stocked at J-Spec.
• Billet main cap girdle — OEM main caps are a known weak point at 700hp+ in sustained use.
• ARP head studs — ARP 2JZ-specific. Torque-to-yield OEM bolts are single-use and not rated for boosted applications.

Cylinder Head and Valvetrain

The 2JZ-GTE head is excellent from the factory — twin cam, 24 valves, sodium-filled exhaust valves. The limitation at high power is spring pressure and cam profile.

• Valve springs and retainers — Brian Crower 2JZ dual valve springs with titanium retainer and seat kit. Stock springs go coil-bind at high RPM with aggressive cams.
• Camshafts — Stock cams handle 600whp without issue. For builds targeting top-end power, Brian Crower Stage 2 264° cams or Stage 3 272° cams add meaningful gains above 6,500 RPM.
• Head gasket — A quality MLS or copper head gasket at the appropriate bore size for your build. Pair with ARP head studs — these are non-negotiable above 600whp.

Forced Induction: Single Turbo Conversion

The stock twin-turbo setup is outclassed by modern single-turbo conversions at anything above 400whp. The single-turbo swap simplifies the system, reduces tuning complexity, and unlocks the engine's real power potential.

Turbo selection by power goal:

• 400–550whp — Garrett G30-series or BorgWarner EFR 8374. Fast spool, excellent street drivability.
• 550–750whp — Garrett G42-series or BorgWarner EFR 9180. Wider power band at the top. Right choice for dedicated track cars.
• 750–1,000hp+ — Precision 6870 or 7675, or comparable large-frame options for dedicated drag builds and high-boost E85 setups.

Required hardware for any single-turbo conversion:

• Turbo manifold — T4 or T6 flange manifold matched to your turbo. J-Spec Garage stocks Supra turbo manifolds for the most popular single-turbo configurations.
• External wastegate — Match spring pressure to your boost target. J-Spec stocks Precision Turbo PTE GEN2 wastegates in 39mm, 40mm, 46mm, and 56mm.
• BOV — A quality blow-off valve matched to your intake pipe flange size.
• Front-mount intercooler — Essential above 400whp for sustained power and heat soak management.

Fuel System

At 500whp the stock fuel system is at its limit. Injector sizing is your first calculation — get this wrong and you will lean out at peak power.

Injector sizing guide:

• 500whp — Injector Dynamics ID1050X (set of 6)
• 700whp — Injector Dynamics 1340cc series (set of 6)
• 900whp+ — Injector Dynamics 2600-XDS or a purpose-built dual fuel system

Fuel pump:

• 500whp — Walbro Universal 450lph high-pressure in-tank pump or Aeromotive 450lph in-tank pump
• 700whp+ — Dual pump setup. Aeromotive 525lph paired with a surge tank is the correct configuration for sustained high-load operation.

Fuel rail and FPR: Stock fuel rail handles 600–700whp. Beyond that, upgrade to a billet rail. Run an adjustable FPR at 43.5 PSI base pressure and scale with boost as required by your injector sizing. Browse PHR Supra-specific components at J-Spec Garage — including the PHR Aluminum Race Radiator for the MK4 Supra.

Engine Management

For any build above 400–500whp, a dedicated standalone ECU is the correct choice. The factory ECU cannot be adequately tuned for high-power applications.

• Haltech Elite 2500 or Elite 1500 — The most widely used standalone for 2JZ builds in the US. Massive tuner support base, full VVTi control, excellent documentation.
• AEM Infinity 6 or 8 — Strong US-supported alternative with full feature parity.
• ECUMaster EMU Black — More affordable entry point with comparable core capability.
• MoTeC M150 — For professional race builds where data logging depth is the priority.

J-Spec stocks Haltech sensors, MAP sensors, boost solenoids, and CAN accessories to support these builds. Confirm your ECU supports: drive-by-wire throttle (if retaining stock DBW), VVTi cam timing control, boost solenoid wiring, and wideband O2 integration.

Supporting Mods

• Radiator — The stock unit is marginal on single-turbo builds. An aluminum replacement is the correct move at 500whp and up. The PHR Aluminum Race Radiator for the MK4 Supra is the correct-fitment JZA80 option stocked at J-Spec.
• Oil cooler — At 600whp+ on track, oil temps become a real problem. Add an oil cooler kit with a thermostatic sandwich plate to keep temps in check during extended sessions.
• Clutch — The W58 handles stock power but fails quickly above 450whp. A twin-disc clutch kit from a reputable manufacturer is required for any serious power level.
• Exhaust — 3-inch turbo-back exhaust minimum. 3.5-inch for 600whp+ builds.

Frequently Asked Questions

Can the 2JZ-GTE handle 1,000hp on stock internals?

No. The claims you see online are mostly short-duration dyno pulls or unverified numbers. Sustained high-power use will destroy OEM pistons and rod bolts above 600whp. For anything above that threshold, build the bottom end properly. The engine itself is absolutely capable of 1,000hp; the stock consumables are not.

Should I keep VVTi on a built 2JZ?

Yes, when possible. VVTi adds significant torque in the 3,000–5,000 RPM range — exactly where you want it on a street car. Peak HP changes minimally with or without it, but the drivability improvement in street use is substantial and worth retaining.

What fuel should I run on a built 2JZ?

E85 is increasingly standard for high-power 2JZ builds. It allows significantly more boost on a given injector setup, offers better detonation resistance than 93 octane, and enables more aggressive tune targets. Size injectors approximately 30% larger than what you would run on gasoline to compensate for E85's lower energy density.

Is the single-turbo conversion worth it?

Almost always yes, above 400whp. The stock sequential twin-turbo system is complex to tune and limits top-end airflow. A single modern ball-bearing turbo on the same engine simplifies the system, improves throttle response linearity, and allows cleaner power delivery at the levels most builders actually target.

What is the realistic cost to build 500whp on a 2JZ-GTE?

Expect $5,000–$8,000 in parts for a single-turbo conversion targeting 500whp on a stock bottom end: turbo, manifold, wastegate, charge piping, intercooler, injectors, fuel pump, and standalone ECU. Add tuning and installation labor. It is one of the best power-per-dollar builds available in the JDM performance space.

Ready to start sourcing parts? Browse the complete 2JZ and JZ Collection at J-Spec Garage — Brian Crower internals, Injector Dynamics injectors, PHR Supra-specific hardware, and 12,000+ JDM performance parts with a price match guarantee. Building a Supra? Shop Toyota Supra turbo kits and manifolds here.
