Nissan GT-R R35 VR38DETT Build Guide: Power Stages, Parts & Limits

The Nissan GT-R R35 is powered by the VR38DETT — a 3.8L twin-turbo V6 hand-assembled by Takumi craftsmen at Nissan's Yokohama plant. From 2009 through 2025, Godzilla earned its nickname by humiliating supercars worth three times its price tag. The VR38DETT block holds 1,000+ hp on stock internals, the GR6 dual-clutch is one of the most capable transmissions ever fitted to a production car, and the aftermarket ecosystem runs deeper than almost any modern platform. This guide covers every power stage from a simple ECU reflash to four-figure wheel horsepower — with honest numbers, real part recommendations, and an accurate look at what actually breaks and when.

Platform Overview: The VR38DETT

The R35 GT-R launched in the US for the 2009 model year at approximately 480 hp / 430 lb-ft, fed by twin IHI RHF55 parallel turbos. Nissan revised the platform significantly for 2012+, raising output to 530–545 hp through revised intake/exhaust geometry and higher boost pressure. The 2017+ facelift reached 565 hp / 467 lb-ft; the NISMO variant peaked at 600 hp / 481 lb-ft.

Key specs: 3,799cc displacement, 60-degree DOHC V6, closed-deck aluminum block with plasma-sprayed cylinder bores, Borg-Warner-derived GR6 6-speed dual-clutch transaxle (rear-mounted), ATTESA E-TS AWD. Every engine is hand-assembled and signed by its builder.

Browse Nissan GT-R parts at J-Spec Garage.

Stock Capability and Limits

The VR38DETT block is genuinely over-engineered. Here is where the actual limits sit:

  • Engine block: The closed-deck VR38 holds 1,000+ hp. It's effectively the last component to fail under power increases.
  • Connecting rods: The OEM rods are the real engine limit — they bend at sustained torque around 600–650 lb-ft. Tuners building 700–800+ whp on stock rods deliberately manage torque at low RPM to stay within the safe window.
  • Stock turbos: Twin IHIs support approximately 600–620 hp. An ECU reflash alone gets 2012+ cars to 540–600 hp; adding downpipes and a high-flow exhaust gets to approximately 600 hp on stock air movers.
  • Stock injectors: The OEM 570cc injectors max out around 530 whp. The DI system supports approximately 750–800 hp total before needing port injection or direct injector upgrades.
  • GR6 dual-clutch transmission: The acknowledged weak link. OEM clutch packs handle approximately 650 lb-ft reliably; above that they wear rapidly. Gear breakage can occur under aggressive launch-control use on early CBA-era cars.

The bottom line: The engine block is not the weak link — it never has been. The connecting rods (at high torque) and the GR6 clutch pack (at high launch-force loads) are what require attention first.

Stage 1: ECU Reflash (540–600 hp)

The COBB Accessport is the platform-standard entry-level tool. OTS Stage 1 and Stage 2 maps exist for most model years, the unit is plug-and-play and resellable, and it can be removed after flashing without triggering persistent check engine lights. A 2012+ GT-R on a COBB reflash typically reaches 540–580 hp at the crank. Add catless downpipes and a high-flow Y-pipe and you arrive at approximately 600 hp — still on the stock turbos, still on stock injectors.

What you need: COBB Accessport or EcuTek ProECU, catless downpipes, Y-pipe, high-flow cat-back (optional for sound and minor backpressure reduction). No fuel system changes needed at this stage.

Limiting factor: The stock turbos hit their efficiency ceiling around 600–620 hp. Beyond that, bigger air movers are required.

Stage 2: Bolt-Ons, Upgraded Injectors & E85 (600–700 whp)

Moving to E85 at Stage 2 requires addressing fueling before the fuel system becomes the bottleneck. The OEM 570cc injectors support approximately 530 whp on gasoline — they cannot support a meaningful E85 build without an upgrade.

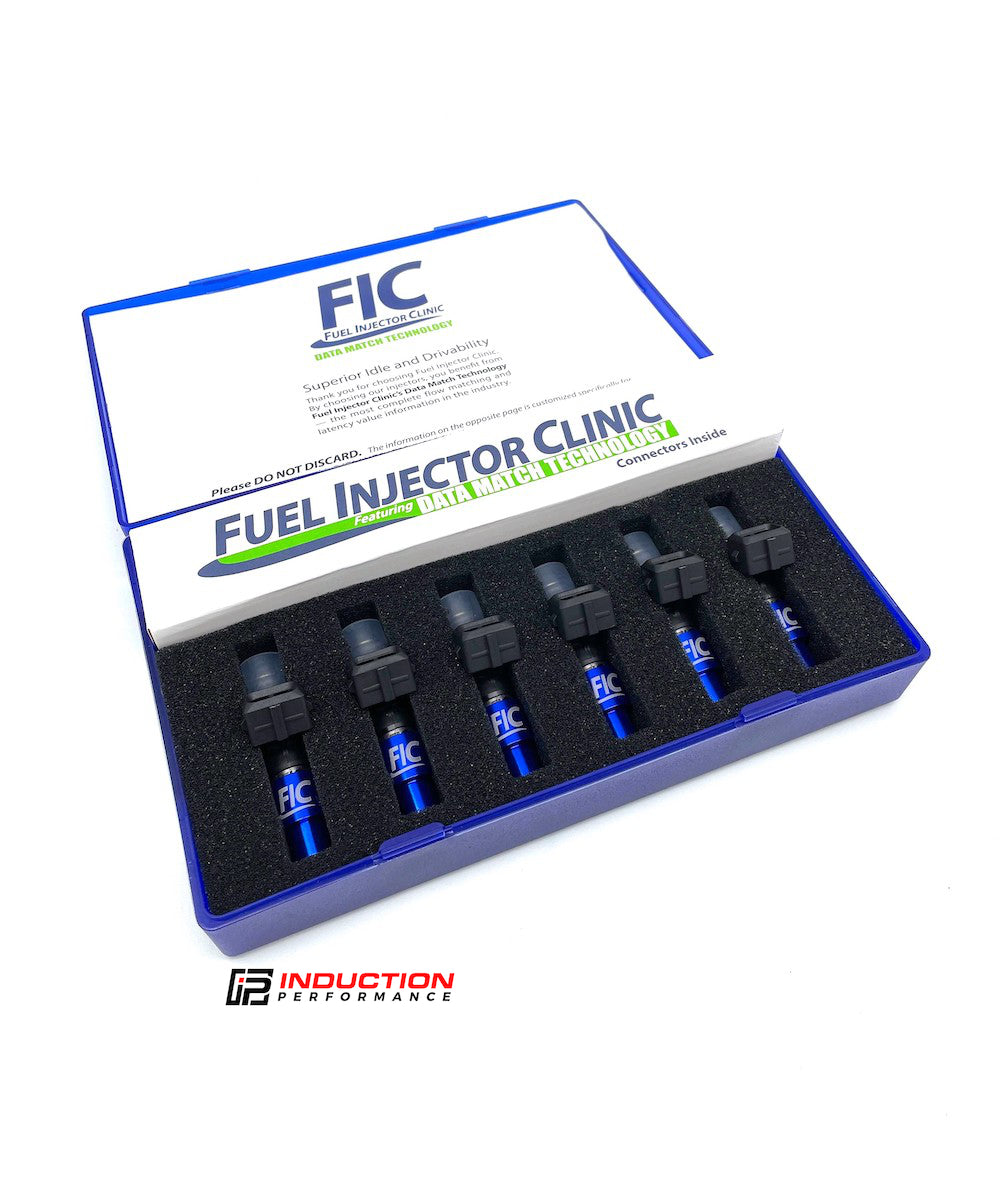

J-Spec Garage stocks the complete Fuel Injector Clinic High-Z injector ladder for the R35 GT-R — all direct-fit, fully characterized sets with complete calibration data for COBB and EcuTek:

Pair any injector upgrade with the Radium Engineering R35 GT-R Fuel Rail Kit. The Radium rails feature 8AN ORB ports, E85-compatible anodized construction, and four ports per rail for a pressure regulator, dampers, and sensor — a direct upgrade over the OEM rails that accommodates any injector size up to and including the largest high-power builds.

Replace the OEM bypass valves at Stage 2. The factory units can surge under elevated boost. J-Spec stocks the HKS Super SQV4 BOV for the R35 GT-R (direct replacement fit, sequential valve design) and the Turbosmart Dual Port BOV for the R35 — both eliminate surge and improve response under elevated boost conditions.

Limiting factor at Stage 2: The stock IHI turbos are maxed at approximately 600–620 hp of airflow. Stage 3 begins with the turbos.

Stage 3: Factory-Frame Turbo Upgrades (750–950 whp)

The most popular upgrade path for the R35 is a factory-location turbo upgrade that replaces the IHI turbos with larger units in the stock manifold position. AMS Performance dominates this segment: their Alpha 9 package (rated 800 hp on pump gas, 900 hp on race gas) set the first pump-gas 9-second R35 pass in 2010 and remains the benchmark for street-friendly Stage 3 builds. AMS's newer OMEGA 9 (using a G25-660-based turbo, two-piece manifold) produces approximately 800 whp with torque management calibrated for stock-rod engines on 2020+ cars.

At Stage 3 power levels, the connecting rods are the primary engine concern. Tuners deliberately limit torque to approximately 600–650 lb-ft on stock-rod cars — achievable because power can be made higher in the RPM range while torque is managed at low RPM. It works, but it is a calculated risk for long-term durability. Forged rods are the correct upgrade for sustained Stage 3 use.

The GR6 DCT must be addressed before a Stage 3 build. Dodson Motorsport's Sportsman clutch kit (9-plate, rated 1,000–1,100 lb-ft) is the entry-level rebuild; their Promax series (10–13 plate) handles 1,400–1,600 hp applications. DCT fluid maintenance is non-negotiable — change fluid after any high-temperature event (above 248°F / 120°C) and monitor temperatures whenever running sticky tires at the strip or circuit.

Head gaskets become critical during big-bore builds or sustained high-boost operation. J-Spec Garage stocks GReddy VR38DETT metal head gaskets in three bores:

GReddy uses a stopper-type folded center-layer design that community consensus (GTRLife) favors over Cometic for big-bore/high-boost VR38 applications. Match the gasket bore to your piston diameter when speccing an engine build.

Stage 4: Big Turbos & Built Engine (1,000–1,500+ whp)

Beyond 950 whp, builds move to larger single or twin turbos and a fully built VR38. A complete engine build means forged connecting rods (Brian Crower produces VR38-specific rods and a 4.45L stroker kit with billet crank), forged pistons, ARP head studs, GReddy head gaskets at the appropriate bore, and often a stroked crank. AMS's Alpha 12 (4.0L built block) has been documented at 1,200+ hp. At approximately 1,000 lb-ft, the bellhousing becomes a structural concern — a sleeved/insert bellhousing (such as ATR's unit) is the standard fix for high four-figure torque builds.

Ignition becomes critical at high boost. High cylinder pressure can extinguish the spark, causing misfires that run the engine dangerously rich and can damage turbo bearings. J-Spec Garage stocks genuine OEM-spec VR38 coilpacks from Platinum Racing Products and PRP R35 coilpack plugs — refresh both before adding serious boost to any VR38 build.

The Fluidampr R35 VR38DETT Steel Internally Balanced Damper is a durability upgrade for any modified VR38. SFI 18.1 certified, it controls torsional vibration that increases significantly under sustained high-RPM / high-boost operation. Fluidampr recommends installing early for best protection — it is not a power-adder, it is cheap engine insurance on a built motor.

For exhaust, the HKS Racing Muffler for the R35 GT-R VR38DETT reduces backpressure without compromising build quality, making it a natural fit for high-output Stage 3 and Stage 4 applications.

The GR6 Dual-Clutch Transmission: Limits and Upgrades

The GR6 is not as fragile as its reputation suggests on stock power. On the OEM clutch pack, it reliably handles 650 lb-ft and behaves well under spirited street driving. The problem is that the VR38 produces more torque than that almost immediately after a Stage 2 turbo/fuel upgrade, and the clutch pack wears rapidly if you are regularly launching at high boost on sticky tires.

Gear-breakage is rarer than clutch wear and most often results from aggressive launch-control use on early CBA production cars. The solenoids and valve body also wear with age and high temperatures — a valve body refresh is worthwhile on any car used at a track.

If you are building past 700 whp or running the car on a drag strip regularly, plan the GR6 rebuild into the budget from the beginning. Dodson's Sportsman kit is the standard entry rebuild for most Stage 3 builds; the Promax handles 1,400–1,600 hp drag race applications.

ECU Tuning: COBB vs EcuTek vs Standalone

  • COBB Accessport: Platform-standard for Stage 1–2. OTS maps for most model years, resellable, removable. The correct starting point for stock-turbo to mild big-turbo builds on pump or E85.
  • EcuTek ProECU with RaceROM: The preferred platform for flex-fuel, port injection (12-injector control via an injector driver box), and aggressive boost/cam management. VIN-locked but offline-capable once configured. The correct tool for Stage 3+ builds.
  • MoTeC / Syvecs / Haltech standalone: For purpose-built race cars where the OEM system is removed entirely. Not common on street GT-Rs and rarely necessary unless building for full competition use.

What J-Spec Garage Stocks for Your R35 GT-R

All orders backed by J-Spec's price match guarantee with fast US shipping.

Common Mistakes on the R35 GT-R VR38DETT

  • Making big torque on stock connecting rods — 600+ lb-ft sustained bends them. Tuners cap torque on stock-rod cars deliberately; respect this limit or budget for forged rods.
  • Ignoring the GR6 DCT — adding a Stage 3 turbo and sticky tires without addressing the clutch pack leads to rapid wear and eventual failure at the strip.
  • Skipping DCT fluid maintenance — change after any high-temperature event; do not wait for the OEM interval on a tracked or drag-prepped car.
  • Trusting pump E85 quality blindly — pump-station E85 can vary from E51 to E85 depending on supplier and season. An ethanol content sensor is necessary for safe closed-loop flex-fuel tuning.
  • Cheap head gaskets on big-bore builds — community consensus on GTRLife consistently favors GReddy's stopper-type design over Cometic at very high boost on bored and sleeved blocks.
  • Neglecting ignition refresh before adding boost — old coils blow out under high cylinder pressure. Replace coils and plugs before the turbo upgrade, not after you've diagnosed a misfire at the track.
  • Skipping the harmonic damper upgrade on built engines — the Fluidampr significantly reduces torsional vibration and protects the crank on high-output builds.

Frequently Asked Questions

How much power can the VR38DETT handle on stock internals?

The closed-deck VR38 block holds 1,000+ hp. The OEM connecting rods are the real limit — they bend at sustained torque around 600–650 lb-ft. Tuners make 700–800+ whp on stock rods by managing torque carefully at low RPM while making power in the upper rev range, but it carries increased long-term risk. Forged rods are the correct upgrade for durability past this threshold.

What is the weakest link in the R35 GT-R powertrain?

The GR6 dual-clutch transmission — specifically the OEM clutch pack, which handles approximately 650 lb-ft before wear accelerates rapidly. On the engine side, the connecting rods are the limit at sustained high torque. The block itself is not the weak link.

COBB Accessport or EcuTek for the GT-R?

COBB for Stage 1–2 builds: simpler, resellable, solid OTS maps, and well-supported by the community. EcuTek for Stage 3+ builds requiring flex-fuel and port-injection integration. MoTeC and Syvecs for fully standalone race builds where the OEM ECU is removed.

What injectors do I need for E85 on the R35 GT-R?

Stock 570cc injectors support approximately 530 whp on gasoline. FBO/E85 builds at Stage 2 typically use 1,000–1,200cc injectors; Stage 3 factory-frame turbo builds on E85 use 1,440–1,650cc. Fuel Injector Clinic High-Z sets are direct-fit for the R35 with complete calibration data for both COBB and EcuTek platforms.

When do I need to rebuild the GR6 transmission?

Plan the GR6 rebuild alongside any Stage 3 turbo upgrade. At 700+ whp with sticky tires and aggressive launches, stock clutches fail quickly. Dodson's Sportsman kit (1,000–1,100 lb-ft rated) is the entry-level build; the Promax handles 1,400–1,600 hp drag applications.

What GReddy head gasket bore do I need for my VR38 build?

The 96mm bore is for stock-bore pistons. The 99mm and 100mm variants are for big-bore builds using larger pistons during an engine rebuild. Match the gasket bore to your piston diameter. Note that some vendor listings show 0.8mm thickness while GReddy's current product spec shows 0.9mm — verify with GReddy when ordering for your specific build.

Is the R35 GT-R reliable as a daily driver?

Yes, on stock hardware with proper maintenance. The VR38DETT is a well-engineered engine that is durable at factory power levels. Common higher-mileage wear items include GR6 solenoids, turbo bearing wear, and oil consumption. A well-maintained stock GT-R is more reliable as a daily driver than its reputation suggests — the reliability concerns apply primarily to heavily modified examples running at elevated boost and torque levels.
