Toyota GR Supra A90/A91 B58 Build Guide: Power Stages, Parts & Limits

The Toyota GR Supra returned in 2019 with BMW's B58 under the hood — a turbocharged 3.0L inline-six with a closed-deck block, forged steel internals, and more tuning headroom than almost any Japanese engine in recent memory. Builders quickly labeled it the modern 2JZ, and the comparison holds: the B58 makes 600–650 whp on the stock bottom end, 900+ whp with a big turbo on stock internals, and responds to a simple ECU flash the way other engines respond to a cam swap. This guide covers every power stage from bolt-ons to built engine — what you need, what you'll hit, and what J-Spec Garage stocks for each tier.

Platform Overview: The B58 in the A90/A91 Supra

The A90 GR Supra (2020) debuted at 335 hp / 365 lb-ft with a two-port exhaust manifold and 11:1 compression. Toyota revised the B58 significantly for 2021+: the six-port manifold, revised pistons dropping compression to 10.2:1, and a software update pushed output to 382 hp / 368 lb-ft. The 2023+ cars added a six-speed manual option; the ZF 8HP 8-speed automatic remains the standard transmission.

Key specs: 2,998cc, single twin-scroll turbo, direct injection (later models add port injection), closed-deck aluminum block with forged steel crank and rods, ZF 8HP torque-converter automatic.

Browse the complete Toyota Supra parts collection at J-Spec Garage.

Stock Capability and Limits

On stock hardware the B58TU (2021+ Supra) puts down 320–370 whp on a Dynojet. Here's where the ceiling sits on each major component:

• Engine block and internals: The B58TU bottom end has held 805–921 whp in documented shop builds on stock motors. Torque — sustained cylinder pressure — is the real limiter, not peak HP.
• Stock turbo: Physically maxed around 500 whp on pump gas, 550 whp on E85. The first hard ceiling.
• Low-pressure fuel pump (LPFP): Fuel pressure drops above approximately 550–575 whp. The stock HPFP cannot support full E85.
• ZF 8HP transmission: Begins to slip around 650 whp / 600 lb-ft on the automatic.
• Axles: On hard launches into sticky tires, stock axles can break around 500 whp.

Fix This First: The Heat Soak Problem

Before chasing power numbers, address the A90's most documented issue: the integrated liquid-to-air charge cooler heat-soaks under sustained load, pulls timing, and drops the car into limp mode. CSF documented GR Supras at 2019 Global Time Attack that could barely complete two laps before limp mode appeared.

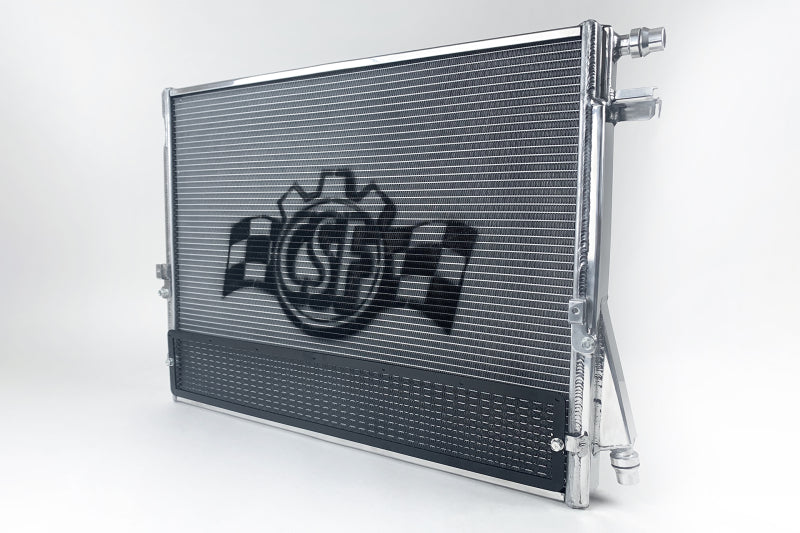

The fix is an upgraded front-mount heat exchanger. J-Spec Garage stocks the CSF A90 GR Supra B58 Heat Exchanger — the platform-standard cooling upgrade that feeds the stock charge cooler with significantly lower coolant temperatures and keeps IATs in check under sustained boost. This belongs on every modified A90 Supra, not just track cars.

Stage 1: ECU Tune + Downpipe (400–450 whp)

The single most effective bolt-on for the B58 is the catless downpipe combined with an ECU flash. A documented National Speed dyno showed stock 337.79 whp → 420.89 whp on 93 octane after a Stage 1 tune — roughly +83 whp peak. E30 ethanol pushes Stage 1 numbers toward 450–490 whp with no additional hardware changes.

What you need: Catless or high-flow downpipe, ECU flash (MHD, bootmod3, or EcuTek), aluminum charge pipe (the OEM plastic unit cracks at raised boost), and the CSF heat exchanger to hold power under sustained load.

Limiting factor: The stock turbo is approaching its efficiency ceiling on pump gas. Stage 2 works within this ceiling; Stage 3 replaces it.

Shop Toyota Supra intake and exhaust and forced induction at J-Spec Garage.

Stage 2: E85/Flex Fuel + Cooling (480–510 whp)

Ethanol blends unlock meaningful additional power on the stock turbo. Running E40 with a flex-fuel sensor and appropriate tune pushes 480–510 whp — still on the stock turbo and stock fuel system. Moving to E85 requires an upgraded LPFP (PFS brushless, Visconti Stage 1, or DeatschWerks DW400 — all rated to approximately 800 whp on E85) and a flex-fuel sensor. The stock HPFP cannot support full E85 without the LPFP upgrade.

What you need: Flex-fuel sensor and kit, upgraded LPFP, E85-capable tune (EcuTek is the preferred platform for flex-fuel integration with port injection support). The CSF heat exchanger and aluminum charge pipe carry over from Stage 1 — non-negotiable before raising boost.

Limiting factor: The stock turbo is physically maxed around 500–550 whp on E85. Stage 3 begins with replacing it.

Shop Toyota Supra cooling parts and electronics at J-Spec Garage.

Stage 3: Big Single Turbo + Port Injection (700–900+ whp)

The dominant Stage 3 path for A90 Supra builds targeting 700+ whp is a large single turbo on a top-mount or stock-location kit. Leading manufacturers include AMS (Alpha 6 at 600+ hp with Garrett GTX3076; Alpha 8 at 700+ hp with GTX3582 — both using the factory electronic wastegate for clean OEM boost management), Black Market Racing (Lightning kit, Turbosmart 6870), RK Autowerks, Spool Performance, Doc Race, and KLM. AMS Alpha kits are notable for retaining the OEM electronic wastegate, eliminating the need for an external unit.

At Stage 3 power levels, port injection becomes the correct fueling strategy. The stock HPFP cannot support full E85 at high power, and port injection — managed through EcuTek with a Motiv Reflex+ controller — delivers clean, accurate fueling across the entire boost curve. It also eliminates the direct-injection carbon buildup concern as a side benefit.

The ZF 8HP must be addressed before or alongside a Stage 3 build. At 650+ whp / 600+ lb-ft the stock clutches slip. Built ZF options from Pure, Spool, and ATS include upgraded clutch packs rated 700–1,000+ whp and revised valve body calibrations.

Titan Motorsports (Orlando, FL) ran the first 8-second A90 pass — 8.941 @ 154 mph — on a Pure 800 turbo, E85, and nitrous on a stock engine, validating what the platform can achieve at Stage 3 hardware levels.

Shop Toyota Supra forced induction, drivetrain, and engine parts at J-Spec Garage.

Built Engine: 900+ whp

For builds targeting 900+ whp or sustained track use at Stage 3 levels, internal upgrades are the correct next step. The standard built B58 spec: ARP CA625+ head studs (the single most critical internal upgrade for preventing head lift), a Visconti Fire-Lock head gasket, forged pistons at 8.5:1 compression for high-boost E85, and upgraded connecting rods. The crank pulley area is worth a preventive fastener kit on high-power builds — crank hub failure is far less common on the B58 than on BMW's N54/N55, but high-power builders address it proactively.

ECU Tuning: MHD vs bootmod3 vs EcuTek

• MHD and bootmod3 (BM3): The two most popular flash platforms for Stage 1–2. OTS map libraries, ~$500–600 all-in, resellable, and straightforward to use. Both require an unlockable ECU — units produced after approximately June 2020 may need bench-unlocking. Best choice for stock-turbo builds.
• EcuTek ProECU: The platform-standard choice for big-turbo builds, flex-fuel integration, and port-injection control via a Motiv Reflex+ controller. VIN-locked but doesn't require the car to be running for flashing. More complex and more expensive — the correct tool for Stage 3+.
• JB4 piggyback: A reversible entry-level option for Stage 1 power without an ECU flash. Limited ceiling and less safe at high boost; a starting point, not a destination for serious builds.

What J-Spec Garage Stocks for Your GR Supra

• CSF A90 GR Supra B58 Heat Exchanger — the essential Stage 1+ cooling upgrade
• Toyota Supra Forced Induction — turbo kits, manifolds, boost hardware
• Toyota Supra Cooling — radiators, heat exchangers, oil coolers
• Toyota Supra Intake & Exhaust — downpipes, charge pipes, intake systems
• Toyota Supra Drivetrain — axles, driveshafts, transmission upgrades
• Toyota Supra Engine Parts — internals, head studs, gaskets
• Toyota Supra Electronics — sensors, flex-fuel kits, ECU accessories
• Toyota Supra Brakes and Suspension & Steering
• Toyota Supra Exterior — aero, body kits, wide-body hardware

Every order backed by J-Spec's price match guarantee with fast US shipping.

Common Mistakes on the GR Supra B58

• Skipping the heat exchanger upgrade and chasing power numbers into limp mode — this is the most common mistake on modified A90 Supras
• Comparing peak whp numbers across different dynos — compare gain-over-stock on the same dyno, not absolute numbers between shops
• Running E85 on the stock fuel system — the HPFP can't support it; the LPFP drops pressure above 575 whp
• Skipping oil intervals on ethanol — change every 3,000 miles on any ethanol blend, no exceptions
• Leaving the OEM plastic charge pipe — it cracks at raised boost; replace it before problems happen
• Over-torquing the stock ZF 8HP — keep torque below 600 lb-ft until it's built; the automatic slips fast above that
• Buying a post-June-2020 locked ECU without confirming it's flashable — bench-unlock may be required

Frequently Asked Questions

How much power can the B58 handle on stock internals?

The B58TU bottom end has held 900+ whp in documented shop builds on stock motors. The Gen1 B58 in the 2020 Supra is reliable to approximately 600–650 whp. Sustained cylinder pressure (torque) under high boost is the real limiter — not a specific peak HP number.

Why does my Supra lose power on track?

Charge-cooler heat soak. The B58's integrated liquid-to-air charge cooler heat-soaks under sustained load, pulls timing aggressively, and drops the car into limp mode. The fix is an upgraded front-mount heat exchanger — the CSF A90 unit is the platform standard.

What is the stock turbo ceiling on the A90 Supra?

Approximately 500 whp on pump 93, 550 whp on E85. Beyond that, a big single turbo is required.

MHD vs bootmod3 vs EcuTek — which should I use?

MHD and bootmod3 are interchangeable for Stage 1–2 flash tuning. EcuTek is the correct platform for big-turbo builds with flex-fuel and port-injection integration. The JB4 is a reversible entry-level piggyback with a limited ceiling.

When does the ZF 8HP automatic need to be rebuilt?

The stock ZF 8HP begins to slip around 650 whp / 600 lb-ft of torque. Plan for a built transmission alongside any big-turbo conversion — built ZF options from Pure, Spool, and ATS are rated to 700–1,000+ whp.

Can I run E85 on a stock A90 Supra?

Not full E85 on the stock fuel system. Up to approximately E40–E50 is achievable with a flex-fuel sensor and appropriate tune. Full E85 requires an upgraded LPFP and port injection to support the fuel volume demanded at high power levels.
