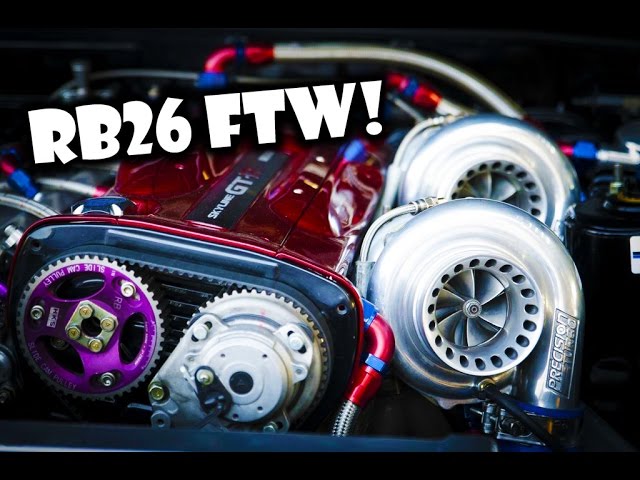

Nissan Skyline GT-R (R32, R33, R34): The Ultimate RB26 Upgrade Guide

The Nissan Skyline GT-R is one of the most celebrated performance cars in history, and the RB26DETT that powered every BNR32, BCNR33, and BNR34 is one of the most capable platforms in the JDM tuning world. From modest street builds to time attack monsters making 1,000+whp, the RB26 scales with the builder's ambition.

This guide covers the upgrades that matter for each phase of an RB26DETT build — what to do first, what the common failure points are, and which parts deliver the most return at each power level.

RB26DETT Overview: Why It Is Special

The RB26DETT was developed specifically for the GT-R, and unlike most OEM engines, it was over-engineered from the start. Nissan knew the GT-R would be tuned, raced, and modified. The result is a 2.6-liter inline-six with a closed-deck iron block, individual throttle bodies (six ITBs from the factory), and a twin-turbo layout that makes it uniquely capable as a performance platform.

Factory specs (BNR32, 1989–1994):

• Displacement: 2,568cc (2.6L inline-six)
• Output: 280ps — JDM gentlemen's agreement cap
• Real-world output: approximately 300–320hp at the crank
• Turbo: Twin Garrett-derived parallel turbos (T25 equivalent)
• Redline: 8,000 RPM
• AWD: ATTESA E-TS (Electronic Torque Split)

R33 and R34 differences: The BCNR33 (1995–1998) retained the same RB26DETT with minor refinements. The BNR34 (1999–2002) introduced the NUR block with improved oil flow and is considered the strongest factory RB26 foundation for high-power builds.

Phase 1: Bolt-Ons (Stock Turbos, 350–400whp)

The factory T25-equivalent turbos are the limiting factor on an otherwise stock RB26DETT. With bolt-on supporting mods and a proper tune, they can be pushed to 350–380whp before hitting their efficiency ceiling.

What to do first:

• Boost controller: A manual or electronic boost controller is the cheapest power gain on the RB26. The factory solenoid limits boost to roughly 10 PSI — a controller and retune can push to 14–16 PSI on the stock turbos.
• Intake and filtration: Pod filters replacing the factory airbox improve airflow into the turbos at no reliability cost.
• Exhaust: A 3-inch downpipe and catback reduce backpressure and improve turbo response.
• Intercooler: The stock front-mount intercooler is undersized for anything beyond light modifications. A larger front-mount reduces charge temps meaningfully at the track.
• Fuel pump: The factory pump is marginal at elevated boost. An upgraded in-tank pump is good insurance even at Phase 1.

Browse Nissan Skyline engine parts at J-Spec Garage for Phase 1 bolt-ons and beyond.

Phase 2: Turbo Upgrade (400–600whp)

Twin turbo options for the RB26DETT:

• T28 frame upgrades: Larger T28-frame turbos in the stock twin configuration — retain the twin-turbo spool characteristics with more headroom. A well-supported option to approximately 450–500whp.
• GT2860RS configuration: A popular twin setup using GT2860RS-class turbos. Quick spool, up to 500–550whp from the pair. A common next step on the RB26.
• Single turbo conversion: At 600whp+, most builders move to a single large turbo on a custom or kit manifold. Single turbo conversions sacrifice some low-RPM response but offer cleaner power delivery at the top and simpler long-term maintenance.

Phase 3: Built RB26 (600whp+)

Above 600whp on the factory bottom end, the cast pistons and rods approach their limits. Stock rods are the primary failure point. A built RB26 requires:

• Connecting rods: Forged H-beam or I-beam rods from reputable manufacturers — Carrillo, Manley, or similar. This is the first internal upgrade on any serious build.
• Pistons: Forged pistons with an appropriate compression ratio for your boost target and fuel type.
• Head gasket and head studs: ARP head studs and a quality MLS head gasket are non-negotiable above 500whp.
• Valvetrain: Uprated springs and retainers prevent float and maintain reliable valve control at high RPM and boost.

Fueling: What the RB26 Needs

Injector sizing by power level:

• Stock injectors (444cc on early R32, 740cc on R33/R34): adequate to approximately 350whp
• 1,000–1,050cc range: covers 450–600whp builds
• 1,300–1,340cc range: for 600–900whp on E85
• 2,600cc range: 1,000whp+ on methanol or race fuel

The RB26's six-cylinder layout means six injectors — factor in a full set when budgeting the fuel system upgrade. J-Spec Garage stocks Injector Dynamics ID1050X, 1340cc series, and 2600-XDS for RB26 applications in multiple set sizes and configurations.

Fuel pump: A high-flow in-tank pump is the standard for RB26 builds above 500whp. At 700whp+, a dual pump or surge tank setup is recommended.

Engine Management

The factory Nissan ECU supports limited tuning on the RB26. For any serious power build, a standalone ECU is required. Popular choices for the RB26DETT include the Haltech Elite series, Link G4X (which has a plug-and-play kit for BNR32/BCNR33/BNR34), MoTeC M1, and AEM Infinity — all widely supported by US-based tuners.

Frequently Asked Questions

How much does a built RB26DETT cost?

A complete built RB26DETT with forged rods, pistons, ARP head studs, uprated valvetrain, a twin turbo upgrade, and a standalone tune runs $15,000–$25,000 in parts and labor. A single-turbo conversion pushing 600–800whp adds $5,000–$10,000 for the turbo system, fuel system, and tune.

What is the RB26's maximum power on stock internals?

500–550whp is the generally accepted limit for a stock bottom end RB26DETT before rod failure becomes a real risk. ARP head studs and a quality head gasket help, but building the bottom end is the correct approach before exceeding 500whp.

Can I run the R32 GT-R in the US?

Yes. R32, R33, and most R34 Skylines have cleared the 25-year federal import exemption. As of 2026, all three generations are legally importable.

Where can I buy Skyline GT-R parts in the US?

J-Spec Garage carries a comprehensive range of RB26DETT performance parts including fueling, ignition, and cooling components. Browse the Nissan Skyline engine parts collection and the Injector Dynamics collection for RB26-specific injector sets with full characterization data.
