RaceOnly FD RX-7 Billet Oil Filter Pedestal: What It Is & Why You Need It

If you're building a serious FD3S and you haven't looked at the oil filter pedestal, you're not done building a serious FD3S. The factory oil filter pedestal on the 13B-REW is one of the most overlooked failure points on the platform — a cast aluminum component that manages oil routing between the engine block and the oil filter, and whose failure modes range from chronic leaks to catastrophic oil loss at the worst possible moment.

RaceOnly's billet oil filter pedestal for the FD RX-7 replaces the entire factory assembly with a precision-machined billet aluminum unit built to tolerances and pressures the factory part was never designed to handle. J-Spec Garage is the only authorized US distributor of RaceOnly products.

What Is the Oil Filter Pedestal?

The oil filter pedestal (also called the oil filter housing or oil filter adapter) is the mounting block between the engine block and the spin-on oil filter. On the 13B-REW, it does more than just hold the filter in place — it integrates the oil pressure sender port, oil cooler ports (on equipped vehicles), and the primary oil routing passages that feed the rotor housings and apex seal lubrication system.

The rotary engine's dependence on oil is different from a piston engine. The 13B-REW uses an oil metering pump that injects a small amount of oil directly into the intake ports for apex seal lubrication — this is separate from the pressurized oil circuit that lubricates the bearings and journals. Both circuits begin at the oil filter pedestal. Any leak or failure in this assembly compromises the entire oil system.

Why the Factory Oil Filter Pedestal Fails

The factory FD3S oil filter pedestal is a die-cast aluminum component that was engineered in the late 1980s for stock power levels and stock operating temperatures. As these cars age, several failure modes emerge:

Sealing surface wear: The flat sealing surface between the pedestal and the engine block develops micro-pitting and warping over time, especially on cars that have seen sustained high oil temperatures. This causes persistent leaks that are difficult to resolve with sealant alone because the surface itself is compromised.

Thread degradation: The oil filter threads on a 30-year-old cast aluminum pedestal can strip or cross-thread, particularly when filters have been over-tightened during service. A failed filter thread on the pedestal means replacing the entire assembly.

Pressure at high power levels: Built engines running higher oil pressure at elevated power levels stress the factory casting in ways it wasn't designed for. Hairline cracks in aged cast aluminum are not visible until they become leaks under pressure.

Oil cooler port failures: Cars equipped with the factory oil cooler have additional ports in the pedestal for the cooler lines. These fittings and their sealing surfaces are common leak points as the cars age.

What the RaceOnly Billet Pedestal Solves

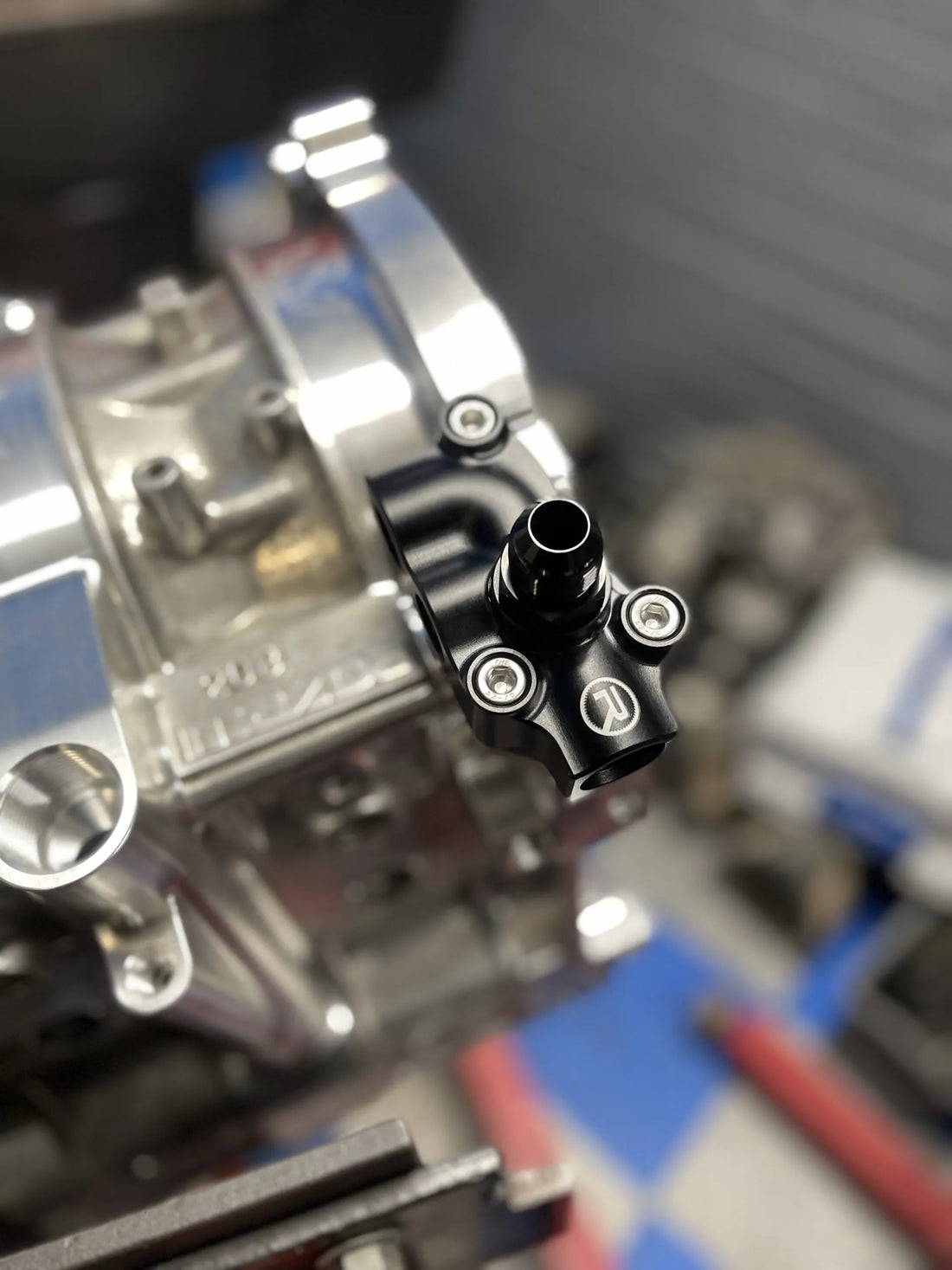

RaceOnly machines their FD RX-7 oil filter pedestal from billet 6061-T6 aluminum — a completely different material and manufacturing process from the factory die-cast unit. The result is a part that is dimensionally tighter, stronger, and more resistant to deformation under thermal cycling than anything Mazda produced in 1992.

Precision-machined sealing surfaces: The mating face to the engine block is machined to a flatness tolerance that ensures a permanent, leak-free seal. No warping, no pitting, no oil seeping down the back of the engine.

Upgraded thread specification: The oil filter thread insert is either stainless steel helicoil or machined to a higher specification than the factory threads. This eliminates stripping risk even across hundreds of oil changes.

Integrated oil cooler provisions: RaceOnly's pedestal includes optimized ports for running an external oil cooler — critical for any FD build that sees track use. Routing oil through a quality cooler before it returns to the engine is one of the most important longevity upgrades for the 13B-REW.

Improved oil pressure sender port: The billet design allows for a better-positioned oil pressure sender that gives more accurate readings than the factory location on some builds.

Who Needs the RaceOnly Oil Filter Pedestal

This upgrade is appropriate for essentially any FD3S build beyond dead-stock restoration. Specifically:

• Single-turbo conversion builds: Higher power means higher oil pressure and higher oil temperatures. The billet pedestal handles these conditions reliably where the factory unit is a liability.
• Engine rebuild candidates: If you're pulling the engine anyway for a refresh, replace the oil filter pedestal while everything is apart. The cost relative to a full engine build is minimal; the risk of skipping it is not.
• Track cars and time attack builds: Extended high-RPM operation at elevated oil temperatures is the worst case scenario for the factory pedestal. This is a mandatory upgrade for any car that races.
• High-mileage FD3S examples: Cars with 100,000+ miles on their original oil system should have the pedestal inspected and proactively replaced regardless of whether leaks are currently visible.
• Any build using an aftermarket oil cooler: If you're upgrading the oil cooling system, the RaceOnly pedestal provides the proper ports and fittings to do it correctly.

The Full RaceOnly Oil System Package

The oil filter pedestal doesn't exist in isolation. RaceOnly also manufactures a complete line of FD3S oil system components that work together:

• Billet oil return adapter — improves oil return from the turbocharger back to the sump, preventing oil accumulation in the turbo on shutdown
• Billet power steering reservoir — a functional and aesthetic upgrade that replaces the factory plastic unit with a billet aluminum reservoir that won't crack, deform, or leak
• Billet breather and catch can hardware — for properly managing crankcase pressure on high-power builds

Building an FD3S with the complete RaceOnly oil system package is the correct approach for any car that is going to be driven seriously. These parts collectively address every common oil system failure point on the platform. Browse the complete RaceOnly FD RX-7 parts collection at J-Spec Garage.

Why Buy From J-Spec Garage

J-Spec Garage is the only authorized US distributor of RaceOnly products. RaceOnly is an Australian manufacturer that does not sell directly in the United States and does not authorize other US retailers to sell their products. If you find RaceOnly products listed elsewhere in the US, they are gray market imports that may not carry warranty coverage or may be counterfeit.

When you order RaceOnly from J-Spec Garage, you're getting genuine product backed by a manufacturer relationship, price match guarantee, and a team that has actually built and run these parts on FD3S platforms. We don't just sell the parts — we understand how they fit and why they matter.

Shop RaceOnly billet FD RX-7 parts exclusively at J-Spec Garage →

Also explore our full Mazda RX-7 engine parts collection for everything else your FD3S build needs.

Frequently Asked Questions

Does the RaceOnly oil filter pedestal fit all FD3S years?

The RaceOnly billet oil filter pedestal is designed for the FD3S chassis with the 13B-REW engine — covering all production years from 1992 to 2002. Contact J-Spec Garage to confirm fitment for your specific Series and configuration before ordering.

Do I need to modify anything to install the RaceOnly pedestal?

The RaceOnly billet pedestal is a direct replacement for the factory unit. No block modifications are required. Depending on your oil cooler configuration, you may need appropriate -AN fittings and hose for the cooler ports. J-Spec can advise on what you need for your specific build.

What oil cooler should I run with the RaceOnly pedestal?

A quality plate-and-fin oil cooler in the 13–19 row range is appropriate for most street/track FD3S builds. Setrab, Mocal, and Earls are all trusted brands. The size of the cooler should be matched to your power output and the severity of use.

Where can I buy RaceOnly parts in the US?

J-Spec Garage is the only authorized US distributor of RaceOnly products. Genuine RaceOnly parts are not available through any other US retailer. Visit jspec-garage.com/collections/raceonly to shop the full RaceOnly catalog.
