What Is the 13B-REW? The Mazda Rotary Engine Explained

The 13B-REW is the engine that made the Mazda FD3S RX-7 legendary. Twin-turbocharged, spinning to 8,000 RPM, producing 255ps from just 1.3 liters of displacement — it was unlike anything else in 1993. It's still unlike anything else today.

But the rotary engine remains misunderstood. People are afraid of it. They repeat the same myths about unreliability without understanding what actually causes failures — or how easily those failures are prevented. This guide explains the 13B-REW in plain terms: how it works, what it makes, what goes wrong, and what you need to keep one healthy.

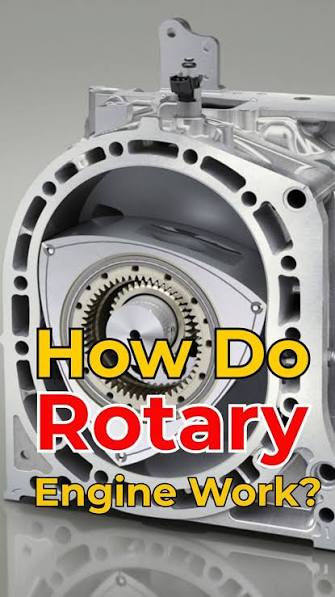

How Does a Rotary Engine Work?

A conventional piston engine uses cylinders and pistons moving up and down to generate power. A rotary engine replaces the pistons with a triangular rotor spinning inside an oval (epitrochoidal) housing. As the rotor spins, the three chambers formed between its faces and the housing expand and contract, cycling through intake, compression, combustion, and exhaust — the same four strokes as a piston engine, just executed through rotation rather than linear motion.

The 13B-REW is a two-rotor engine. Each rotor has three faces, and the two rotors are offset 180 degrees from each other, which is why a two-rotor 13B fires as smoothly as a six-cylinder — there are always two power pulses per revolution overlapping.

Key differences from piston engines:

• Higher RPM capability — rotors don't have reciprocating mass, so they rev freely. The 13B-REW's 8,000 RPM redline was extraordinary for a street car in 1993.
• Power density — 255ps from 1.3 liters was more than double the specific output of comparable piston engines at the time
• Compact and light — a 13B-REW is significantly smaller and lighter than any six-cylinder making equivalent power
• Different maintenance needs — apex seals instead of piston rings, oil in the combustion process, and higher sensitivity to coolant and oil quality

13B-REW Specifications

Factory specs (1993–2002 FD3S RX-7):

• Displacement: 1,308cc (0.654cc per rotor)
• Configuration: Two-rotor Wankel (sequential twin-turbocharged)
• Output: 255ps (252hp) / 294 Nm (217 lb-ft) at the crank — JDM spec
• US USDM detuned output: 255hp at the crank (same power rating, slightly different tune)
• Redline: 8,000 RPM (7,500 RPM rev limiter in USDM)
• Turbo system: Sequential twin — primary turbo (CT12B) spools first; secondary turbo (CT20B) comes on above ~4,500 RPM
• Weight: Approximately 104kg complete with accessories
• Fuel requirement: 91 octane minimum; 93+ recommended for performance

What Makes the 13B-REW Special

The sequential twin-turbo system is one of the most sophisticated factory forced induction setups of its era. Mazda engineered it to eliminate turbo lag on the street while still delivering massive top-end power. Below 4,500 RPM, the primary CT12B spools and provides responsive boost. Above that, the secondary CT20B comes online and the power delivery surges through the top of the rev range.

The result is a car that feels like a naturally aspirated engine below 3,500 RPM, transitions to strong boost, then pulls hard all the way to the 8,000 RPM limiter. It was factory-tuned for the RX-7's mid-engine-biased chassis balance, which gives the sequential boost delivery a character that's uniquely addictive.

The power-to-weight ratio of the FD3S was extraordinary for its time. A 2,800 lb car with 255ps from a 1.3-liter engine posted 0–60 mph times of 5.0 seconds in 1993. Consumer Reports called it the best-handling car in America that year.

Common 13B-REW Problems — and What Actually Causes Them

The rotary's reputation for unreliability is earned — but almost always on cars that were not properly maintained. Understanding the failure modes makes them preventable.

Apex seal failure: The most cited rotary failure. Apex seals are the tips of the rotor that maintain compression between the rotor face and the housing. They wear with heat cycles, contaminated oil, or detonation. On a properly maintained engine with quality oil, apex seals routinely last 150,000+ km. On a neglected engine, they fail much sooner. Overheating is the apex seal's single biggest enemy.

Flooding: The 13B-REW is prone to flooding (fuel washing the combustion chamber) if the car is started cold and shut off before it reaches operating temperature. The protocol is simple: don't shut the car off until the temperature gauge has reached operating temp. Many RX-7 problems trace to owners who ignored this.

Coolant contamination: A cracked side housing or failed O-ring can allow coolant into the combustion chamber. Water in a rotary is more destructive than in a piston engine because there's nowhere for it to go — the rotor can hydrolock violently. White smoke on startup is the early warning sign; take it seriously immediately.

Oil consumption: The 13B-REW is designed to consume oil — it's part of the lubrication system. Normal consumption is 1 liter per tank of fuel. Owners accustomed to piston engines who don't check oil regularly will eventually run a 13B-REW low. Check the oil every fill-up, always.

Flooding from OMP failure: The oil metering pump delivers oil to the combustion process. If it fails or its lines clog, the rotors run without adequate lubrication at high RPM. Many builders delete the OMP and pre-mix two-stroke oil directly into the fuel at 2% to eliminate this failure mode entirely.

Keeping a 13B-REW Reliable: The Short List

• Oil: Use quality 10W-40 or 20W-50 mineral-based rotary oil. Change it every 3,000–4,000 km. Never let it go low.
• Coolant: Flush and replace on schedule. The 13B-REW runs hot; contaminated coolant accelerates housing damage.
• Warm up and cool down: Let the engine reach operating temperature before pushing it. Let it idle 1–2 minutes before shutting off after a hard run.
• Ignition: Fresh spark plugs on schedule (every 20,000 km or less on a performance build). Misfires on a rotary cause unburned fuel to wash the apex seals.
• Boost management: Don't run excessive boost without upgraded coils and a proper tune. The factory ignition is a known weak point above 15 PSI.

For performance builds, RaceOnly makes a comprehensive range of billet upgrades for the FD3S 13B-REW — coil kits, oil system components, fuel rail kits, and more. J-Spec Garage is the only authorized US distributor of RaceOnly rotary parts.

The 13B-REW vs Other Rotary Engines

The 13B designation covers multiple rotary variants. The REW is the twin-turbocharged version. Other common variants:

• 13B-T — the single-turbo 13B used in the FC3S RX-7 (1985–1992). Lower output (~185hp), simpler system, same basic architecture
• 13B-MSP (Renesis) — the naturally aspirated rotary in the RX-8 (2003–2012). No turbo, side ports instead of peripheral ports. Lower power density, different failure modes.
• 20B-REW — the three-rotor turbocharged engine in the Eunos Cosmo. Same family, 1.96L displacement, extremely rare in the US.

The 13B-REW in the FD3S is widely considered the peak of the peripheral-port turbocharged rotary. The 13B parts collection at J-Spec Garage covers both the FC's 13B-T and the FD's 13B-REW.

Frequently Asked Questions

How long does a 13B-REW last?

A properly maintained 13B-REW can last 150,000–200,000 km before requiring a rebuild. Many have gone further. The key variables are oil quality, oil change frequency, warm-up protocol adherence, and coolant condition. The horror stories about rotaries dying at 60,000 km almost always involve one of these being neglected.

Is the 13B-REW a good daily driver?

Yes, with lifestyle adjustments. You need to check oil every fuel fill-up, warm the engine up before driving hard, and not shut it off cold after short trips. For someone who understands the maintenance requirements, an FD3S is a reliable daily driver. For someone who treats it like a Toyota Camry, it won't be.

How much power can a 13B-REW make?

On stock internals with a single turbo conversion and standalone ECU, 350–400whp is achievable reliably. Built engines with ported housings, aftermarket apex seals, and a quality turbo system have exceeded 700whp. For street builds, 300–400whp is the reliable sweet spot on the stock displacement 13B-REW.

What oil should I use in a 13B-REW?

10W-40 or 20W-50 mineral-based oil is the consensus recommendation. Avoid full synthetic in stock-configuration rotaries — synthetic oil can accelerate apex seal wear under certain conditions. Rotary-specific oils from companies like Mazda and Idemitsu are formulated for the application. Change it every 3,000–4,000 km regardless of what the oil change sticker says.

Where can I buy 13B-REW parts and RaceOnly upgrades in the US?

J-Spec Garage carries an extensive range of 13B-REW performance and maintenance parts, including the full RaceOnly lineup — available only through J-Spec in the US. Browse the Mazda RX-7 engine parts collection and the RaceOnly collection.

---
