350Z DBW V1 Pedal adapter for Nissan R33/R34/S14/S15

The 350Z DBW V1 Pedal Adapter is a precision aluminum bracket solution for fitting the Nissan 350Z drive-by-wire pedal assembly into right-hand-drive S-chassis and R-chassis builds. The US-spec 350Z pedal assembly (Part #18002-AM81E) is the most cost-effective and widely available DBW pedal option for Skyline R33/R34 and S14/S15 conversions — but the LHD offset of the US-spec unit creates a positioning problem in RHD vehicles. This bracket relocates the pedal to the correct OEM position without requiring modification or bending of the pedal assembly itself.

What Problem This Solves

US-spec 350Z pedal assemblies are designed for left-hand-drive vehicles. In an RHD chassis, the LHD offset places the accelerator pedal noticeably off-center from where the factory cable-throttle pedal was mounted. A direct install without this adapter requires bending the pedal bracket — a compromise that affects pedal feel and long-term durability. The V1 adapter positions the 350Z unit exactly at the OEM firewall location, with no bending or compromise. Stainless steel firewall studs are included to simplify installation, solving the common problem of bolt alignment under the dash in limited access conditions.

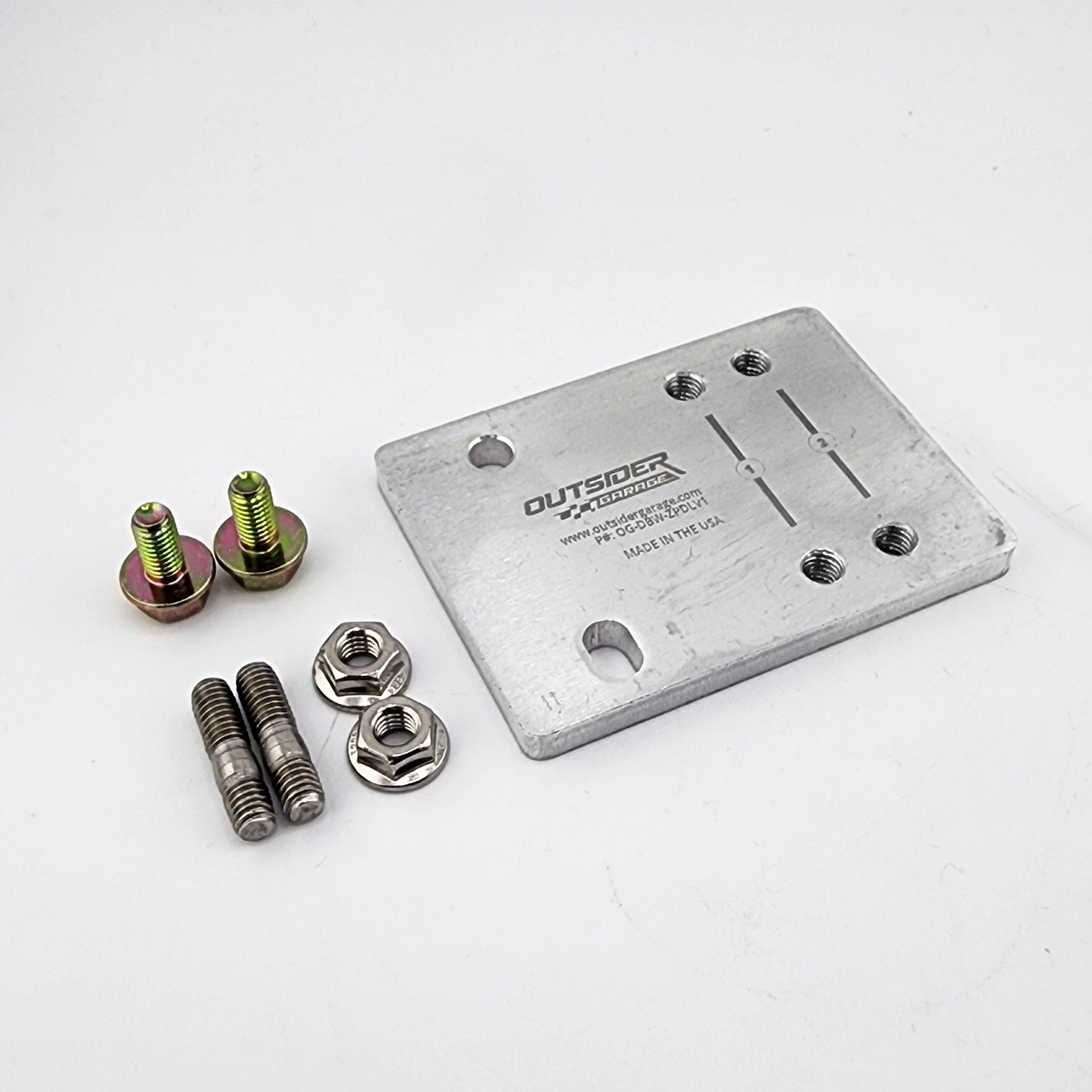

What Is Included

• Billet aluminum pedal relocation bracket
• 2× stainless steel firewall studs
• 2× stainless steel nuts
• 2× pedal mounting bolts

Installation Note

The US-spec 350Z pedal assembly includes a pedal stop attached to the bracket. This pedal stop should be removed prior to installation — the V1 relocation bracket positions the pedal correctly relative to the OEM firewall-mounted stop. The 350Z pedal assembly and wiring are not included; Part #18002-AM81E is available through Nissan dealers and major aftermarket suppliers.

Fitment

• Nissan Skyline R33
• Nissan Skyline R34
• Nissan 240SX / Silvia S14
• Nissan Silvia S15
• May fit other RHD S and Z-chassis applications with similar pedal geometry

J-Spec Garage stocks this kit with price match guarantee and fast US shipping.
