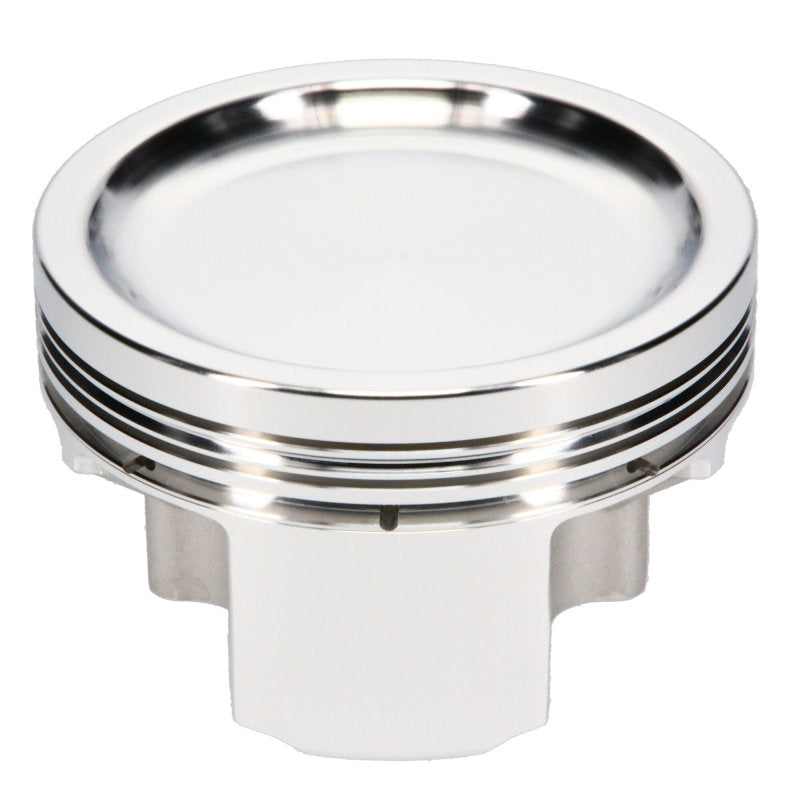

JE Pistons NISSAN KA24DE 11.0 KIT Set of 4 Pistons

JE Pistons NISSAN KA24DE 11.0 KIT Set of 4 Pistons

$899.99
$899.99
Sale Sold out
Shipping calculated at checkout.

Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applicationsDesigned specifically for each engine and use application to provide optimized performance durabilityProprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pinSkirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noiseAccumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent powerIncludes high-quality wrist pins, locks, and JE Pro Seal premium piston ringsMade 100% in the USA

Piston Rings Included:
No
Bore (in.):
3.523 in.
Bore (mm):
89.500mm
Stroke:
96.00mm
Engine Stroke Type:
Stock
Rod Length:
165.000mm
Piston Style:
Dish, with four valve reliefs
Piston Material:
Forged aluminum
Compression Height (in.):
1.336 in.
Piston Head Volume (cc):
+6.60cc
Wrist Pin Style:
Press-fit or floating
Wrist Pin Retainers Included:
Yes
Wrist Pin Included:
Yes
Pin Diameter (in.):
0.827 in.
Piston Ring Thickness:
1.00mm x 1.20mm x 2.80mm
File Fit:
No
Gapless:
No
Remanufactured:
No
Quantity:
Sold as a set of 4.


This Part Fits:



Year Make Model Submodel
1991-1993,1995-1998 Nissan 240SX Base
1991-1992,1997-1998 Nissan 240SX LE
1991-1998 Nissan 240SX SE
