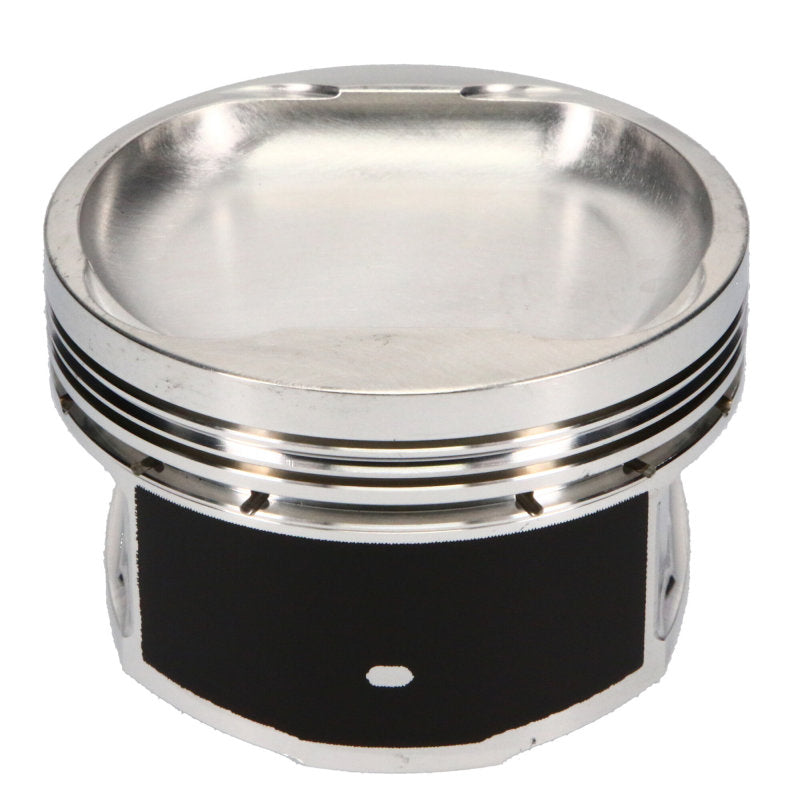

JE Pistons Toyota Supra 2JZGTE DISH KIT Set of 6 Pistons

Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applicationsDesigned specifically for each engine and use application to provide optimized performance durabilityProprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pinSkirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noiseAccumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent powerIncludes high-quality wrist pins, locks, and JE Pro Seal premium piston ringsMade 100% in the USA

Cylinder Head
2JZ-GTE
Bore Diameter
86.50 MM
Piston Head Type
Dish
Compression Height
1.338 IN
Piston Volume
-20.80 CC
Piston Material
2618
Piston Quantity
6
Forging Type
Round
Piston Average Weight
332 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0400 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.111 IN
Wrist Pin Outer Diameter
0.866 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
This Part Fits:
