RaceOnly 7 Speed Rotary DCT FD RX7 Kit (DOES NOT INCLUDE TRANSMISSION!)

Raceonly 7 Speed Rotary DCT FD RX7 Kit

The kit originally designed of 13B (Cosmo RE or FD REW) and 20B automatic engines it is also compatible with the Manual FD engines with some slight cutting to the rear iron.

Instructions are provided with the sale of every kit on what cutting is required to make it as easy as possible.

Kit Includes

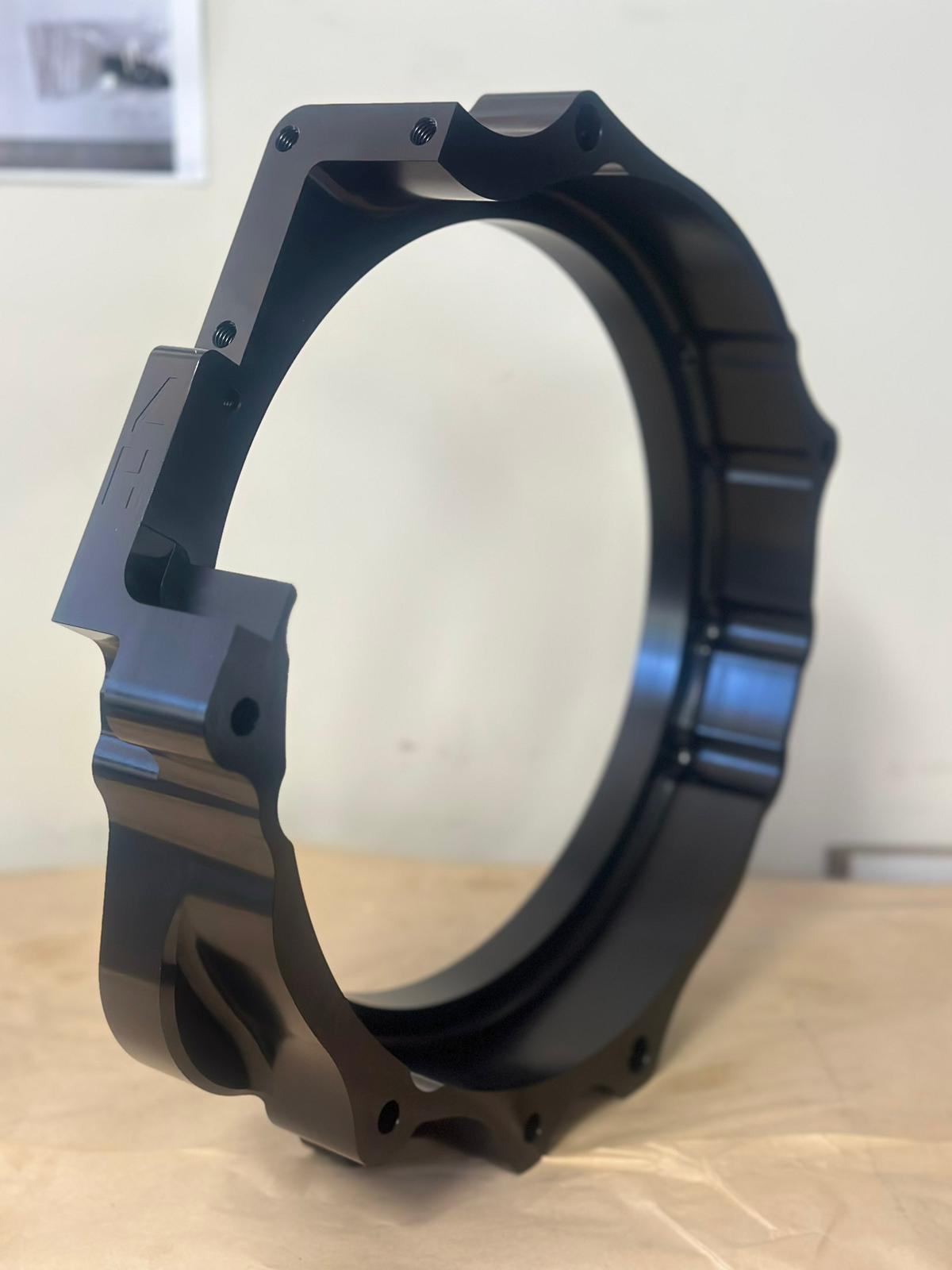

Raceonly DCT Adaptor

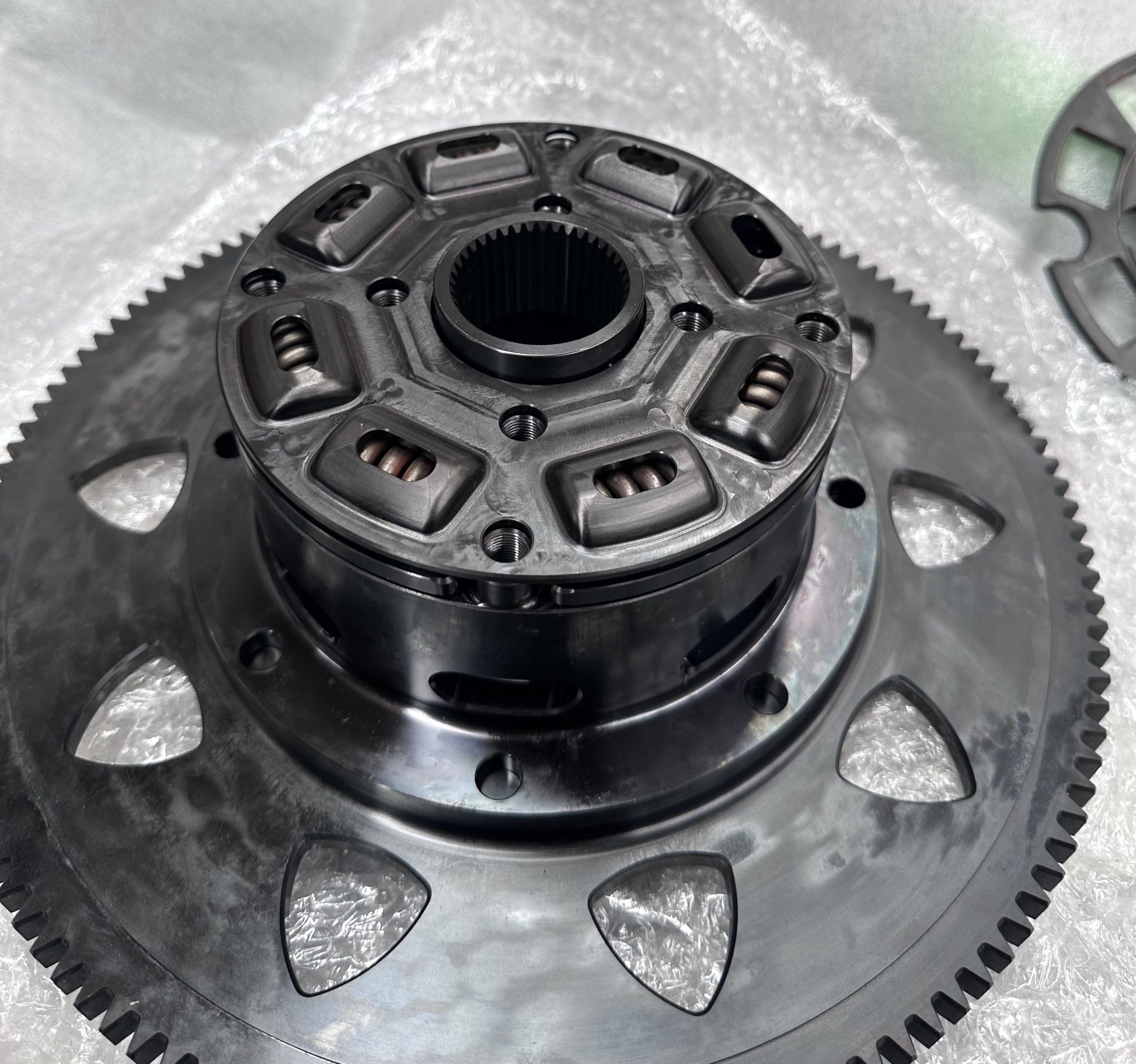

Raceonly DCT Sprung Flywheel/Hub Adaptor Kit

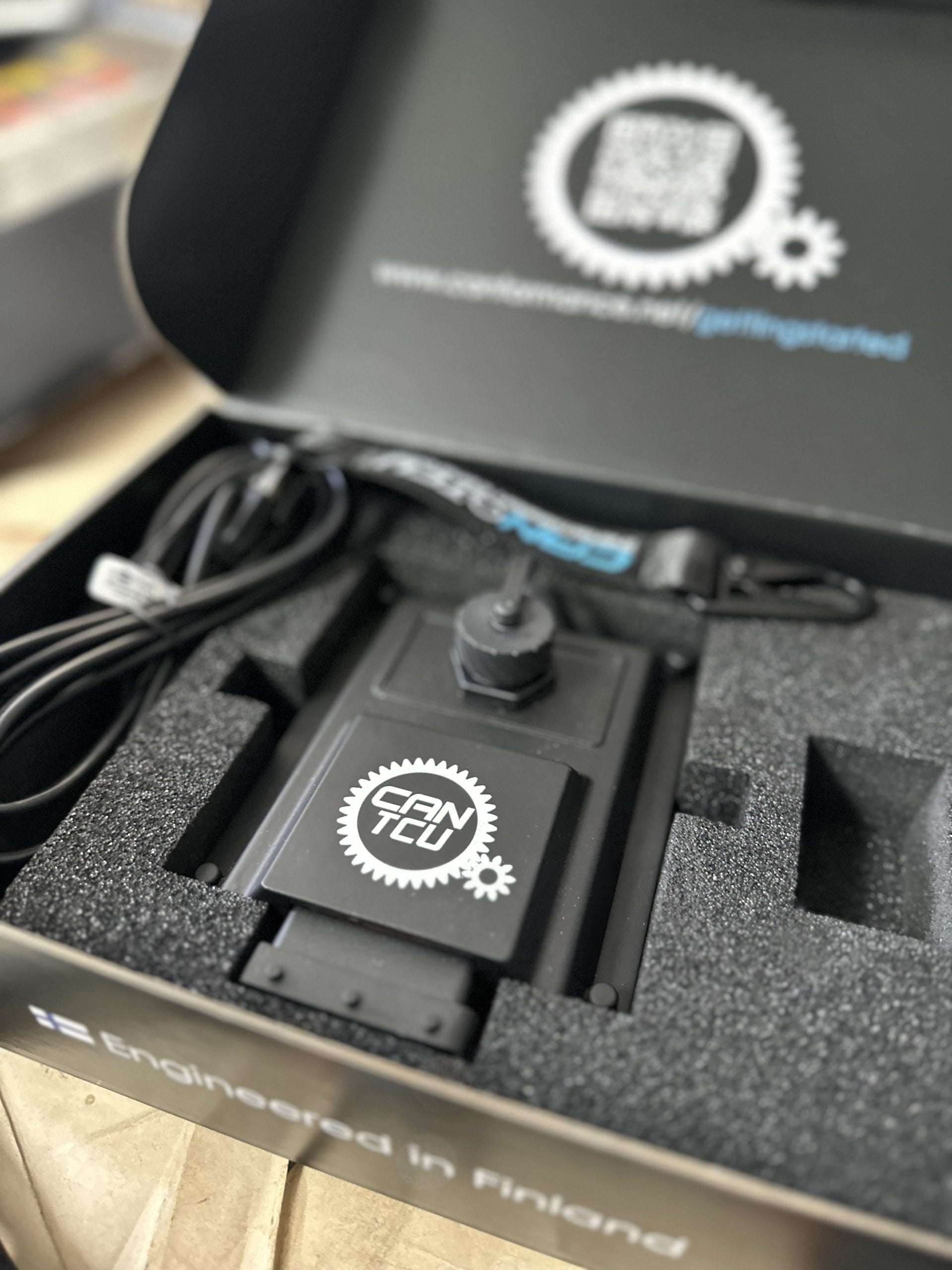

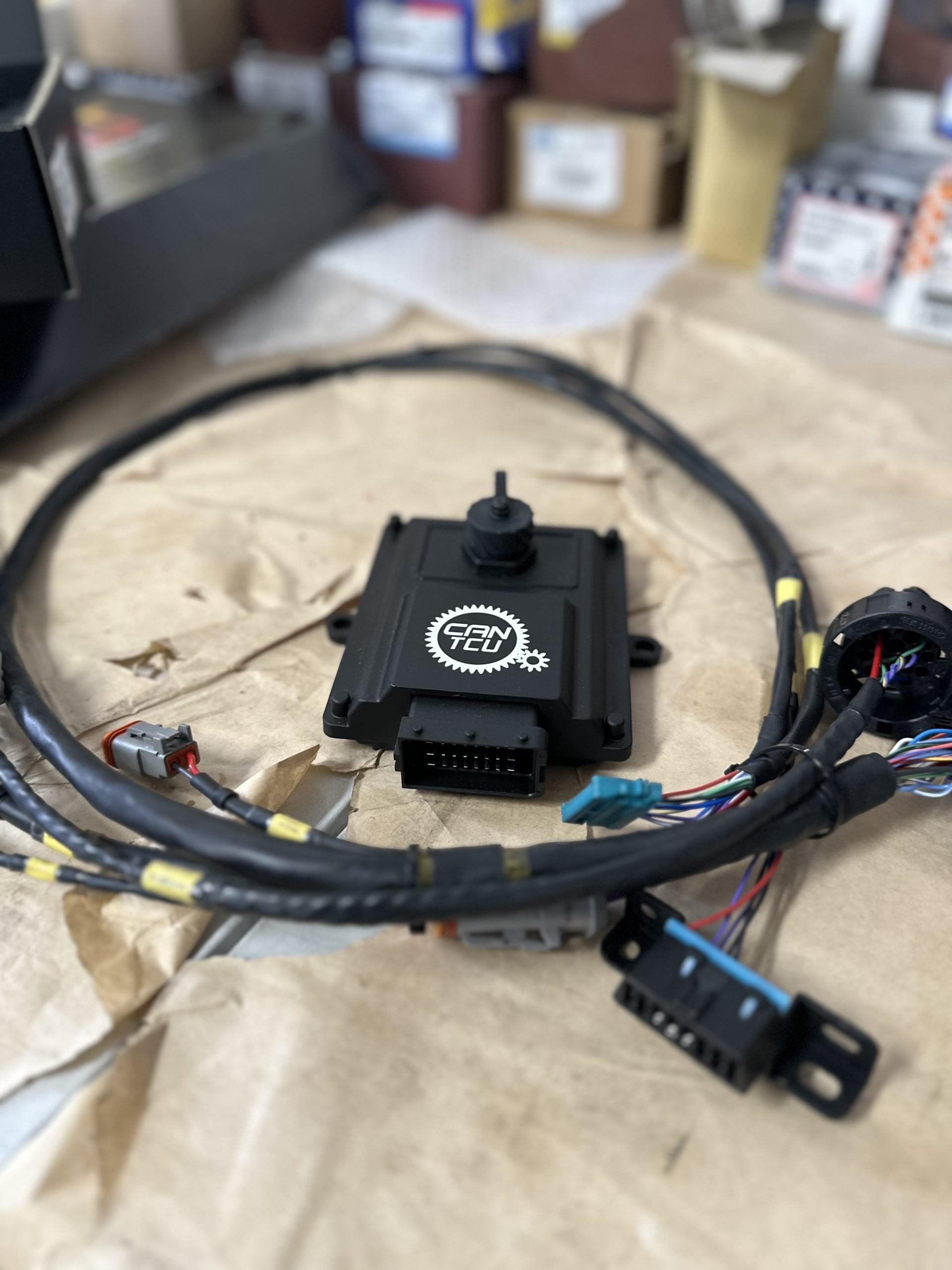

FD Automatic Starter Motor CANTCU with Terminated Wiring Harness

M4 Shifter

FD M4 Shifter Housing (Bolt on )

FD F82 Transmount (Bolt on but does require mods to either accept power frame or delete power frame)

(OPTIONAL) Raceonly Speed Sensor kit to be installed in place of ABS Wheel speed sensor

(OPTIONAL) 1350 Driveshaft (Bolt on)

(OPTIONAL) Raceonly Wireless Paddle System with 6 Buttons, 2 Dials and 2 Paddles

Requirements

Source your own F82 Transmission from M3, M4, M2, can also use E Series DCT transmission.

Supported ECU's Haltech, Motec, Maxxecu (other eco's are supported but RaceOnly does not provide technical support unless it is one of the ECU's they support) Your ECU requires a Driveshaft or Rear wheel speed input, if your ABS has been deleted you use the RaceOnly Speed sensor kit which is bolt on in place of your ABS sensor or you can use the OEM ABS sensor repurposed to your ECU. Some users have successfully shared the signal from the ABS sensor to their ECU and retained the ABS. You can do this but RaceOnly DO NOT officially support this.
