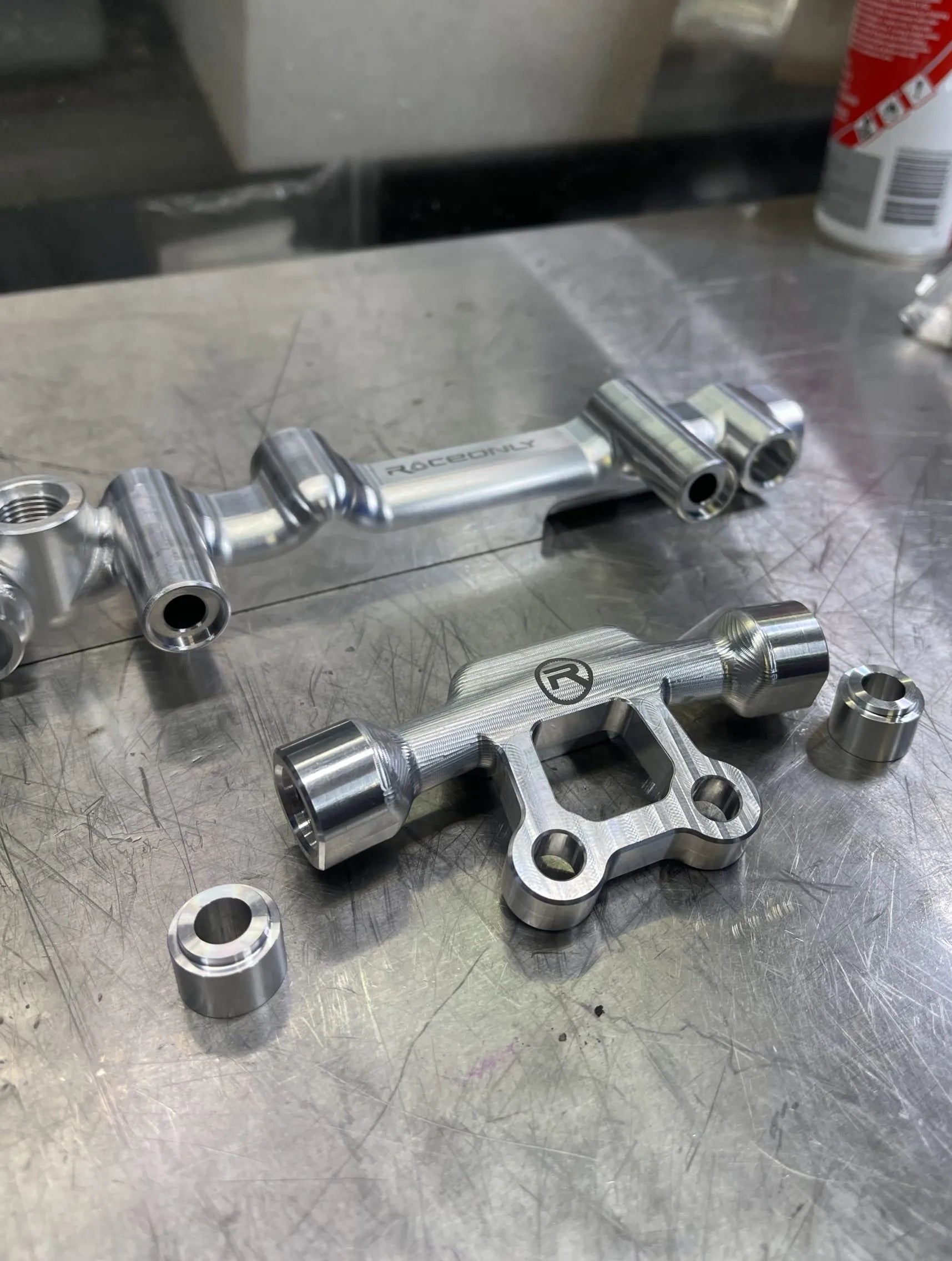

Raceonly FD RX7 13B REW Fuel Rail Kit

Raceonly FD RX7 13B REW Fuel Rail Kit

Our Fuel rail kit is compatible with Injector Dynamics Bosch and Siemens Top Feed Injectors,Fueltech all with 14MM O-rings. Just need to choose the correct length.

What fittings does the Primary Rail have? It has AN6 ORB Fittings, If you want to run AN-8 or AN-10 fittings you can!

What fittings do the Secondary Rail have? It has M12X1.25 on the front engine side and AN-6 ORB  on the rear side, it also has AN-6 ORB on the side of the rail for multiple plumbing options.

Includes Adaptors that go into the centre Plate and the lower Intake Manifold (It's important to select what brand of injectors you will be using, Options are Bosch or ID(If you are using Siemens or anything brand select Bosch)

Fuel rails can be purchased separately see below for individual items

Raceonly RX7 FD Primary Rail

Raceonly RX7 FD Secondary Fuel Rail

Fitment Information:

93-2002 Mazda RX7 FD (13B REW)

Secondary:

34mm *APV / Emissions Compatible (NOT emissions legal) (Choose this option for Twin Turbo, can also be used with single turbo)

48mm (Recommended for most single turbo options) *Low profile APV block-off plate required

60mm (Siemens Deka Injectors)  *Low profile APV block-off plate required

Block Off plate is found HERE

Injector Dynamics Available HERE

Note: We do our very best to stock RaceOnly parts in the USA but due to configurations and availability some items may ship direct from Australia. Most popular items will be in stock and ship directly.
