Raceonly FD RX7 Airpump Delete Kit Gen 2

The RaceOnly FD RX-7 Air Pump Delete Kit Gen 2 solves one of the most common engine bay challenges on a modified FD3S: the factory air injection pump consumes significant real estate on the driver's side of the engine bay — space that becomes critical when fitting a large single turbo. The RaceOnly kit eliminates the air pump and replaces the belt routing with a precision-engineered billet pulley system that retains all other accessories cleanly.

J-Spec Garage is the only authorized US distributor of RaceOnly parts. This kit ships from domestic inventory in Panama City Beach, FL — no overseas wait times, no gray-market risk.

Why Gen 2 Fixes the Belt Slippage Problem

Belt slippage is the primary failure mode of air pump delete kits. RaceOnly designed the Gen 2 specifically to eliminate it. The Gen 2 features a textured finish on both the belt and the pulley contact surface — twice the grip area of the original Gen 1 design. The pulley is also larger in diameter than OEM, providing additional belt deflection that maintains drive tension without over-tightening. The result is OEM-level reliability without a secondary idler pulley.

The kit is fully compatible with the OEM alternator pulley and with the RaceOnly 180-amp high-output alternator for FD3S builds running high electrical loads. No bearing assemblies anywhere in the system — eliminating the bearing failure mode that plagues idler-pulley-based delete solutions.

Key Features

• Gen 2 textured belt and pulley — double the grip of Gen 1, zero belt slip even during large transient throttle events
• Larger pulley diameter — improved belt deflection without over-tensioning the system
• Bearing-free design — no bearings to fail under heat and vibration
• OEM alternator compatible — works with both factory and RaceOnly 180-amp alternator

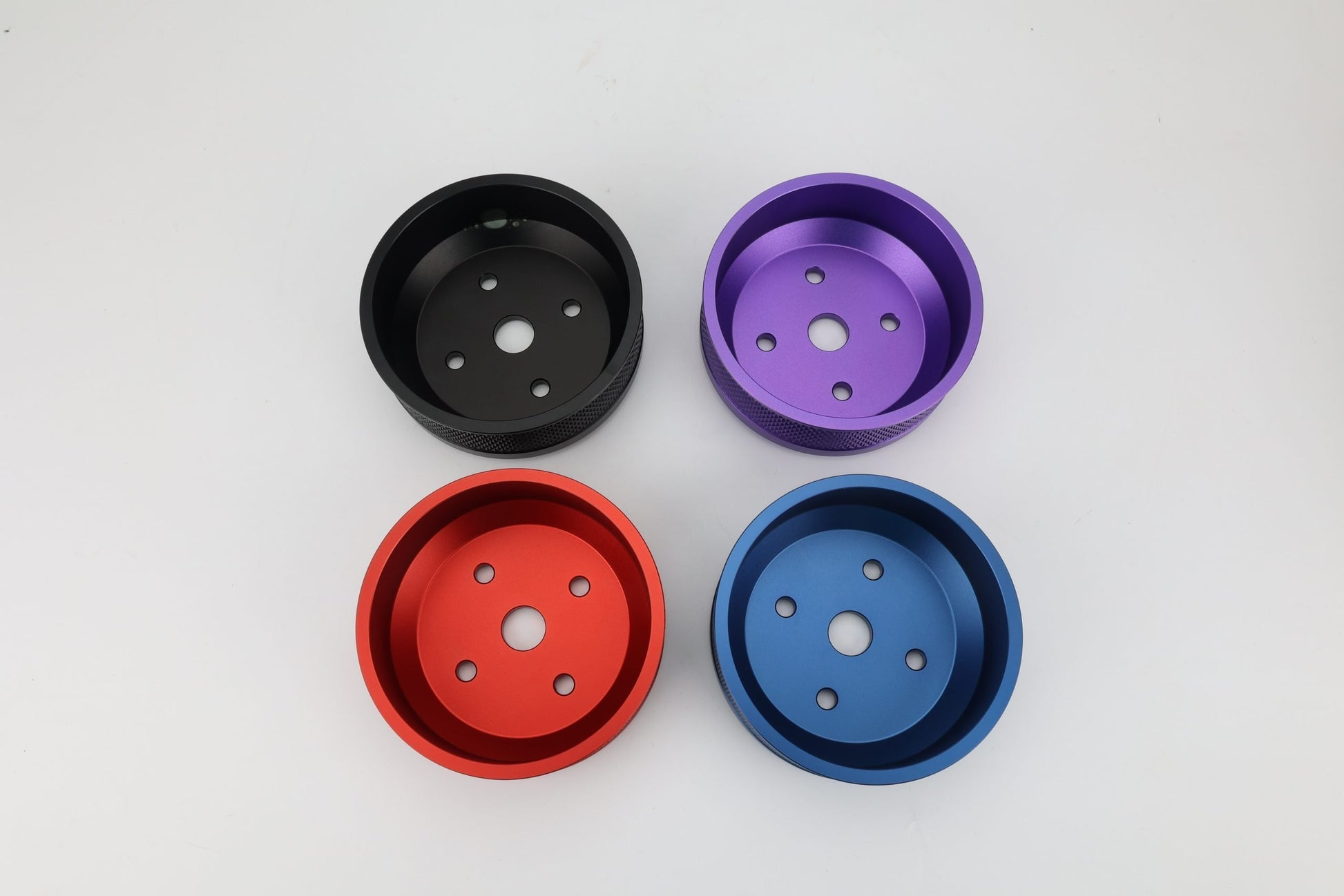

• Available in Black, Blue, Red, and Violet anodized finishes
• 100% plug-and-play — belt and all hardware included, installs without additional components
• Full driver-side clearance — clears the largest single turbo setups in the FD3S bay

What Is Included

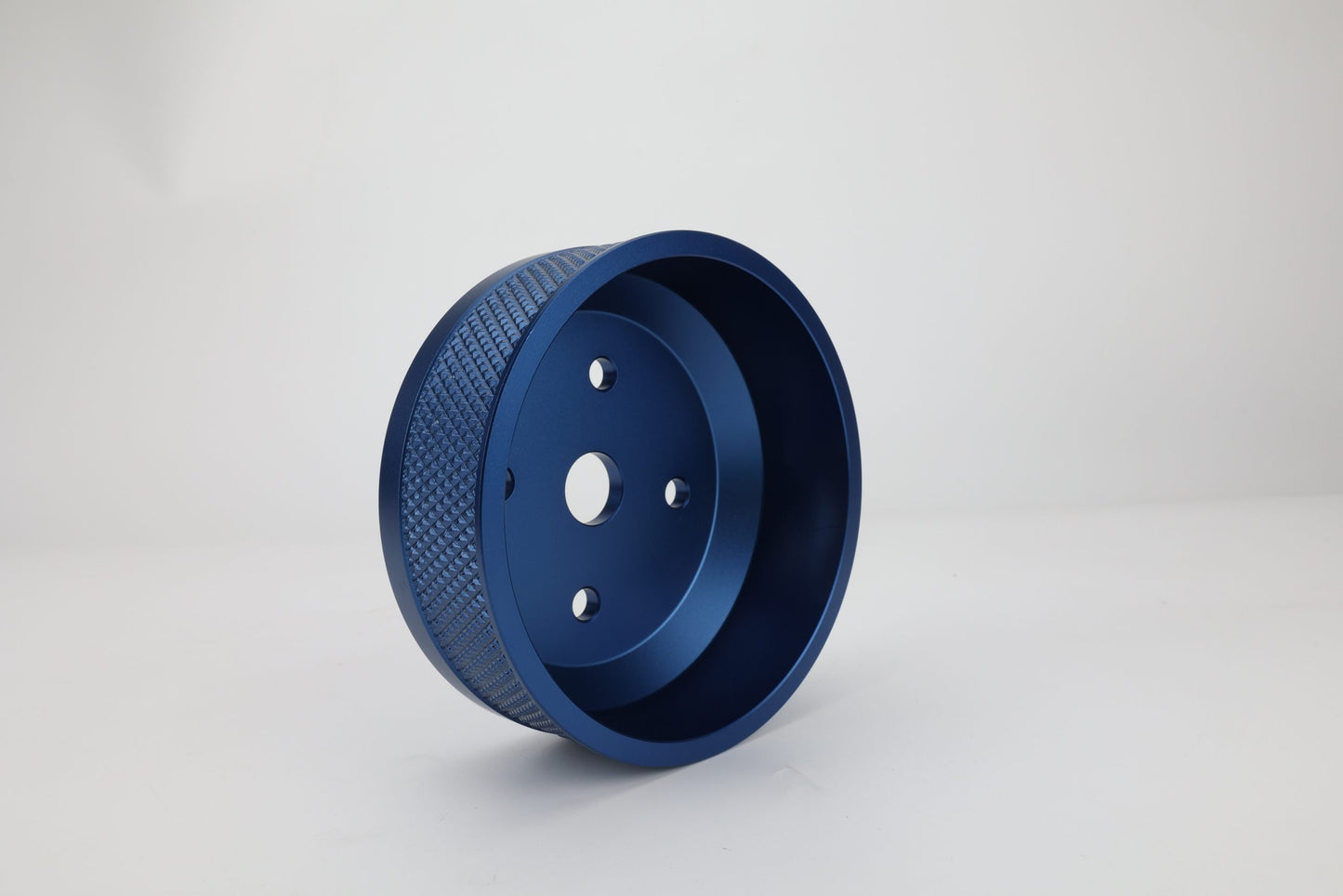

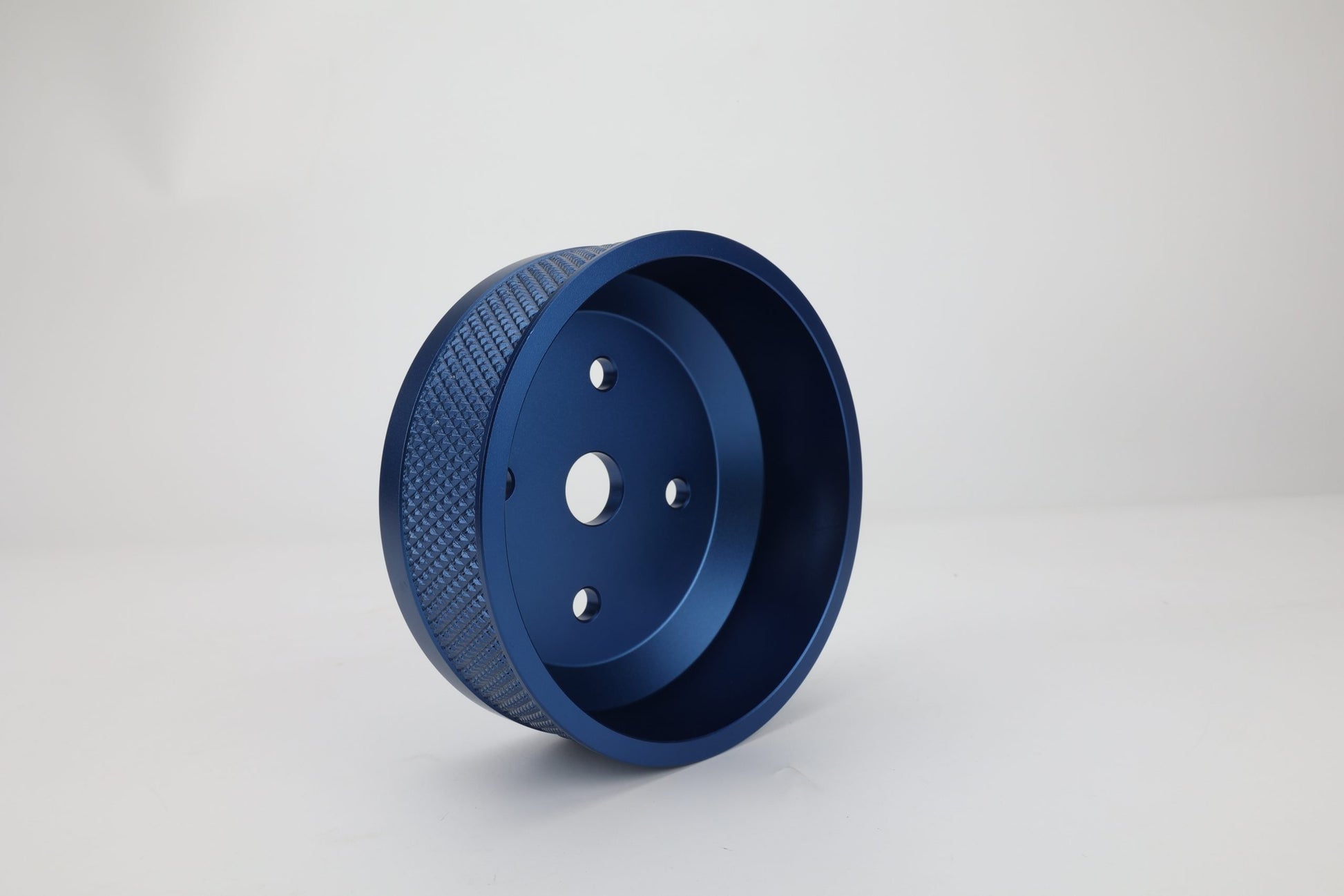

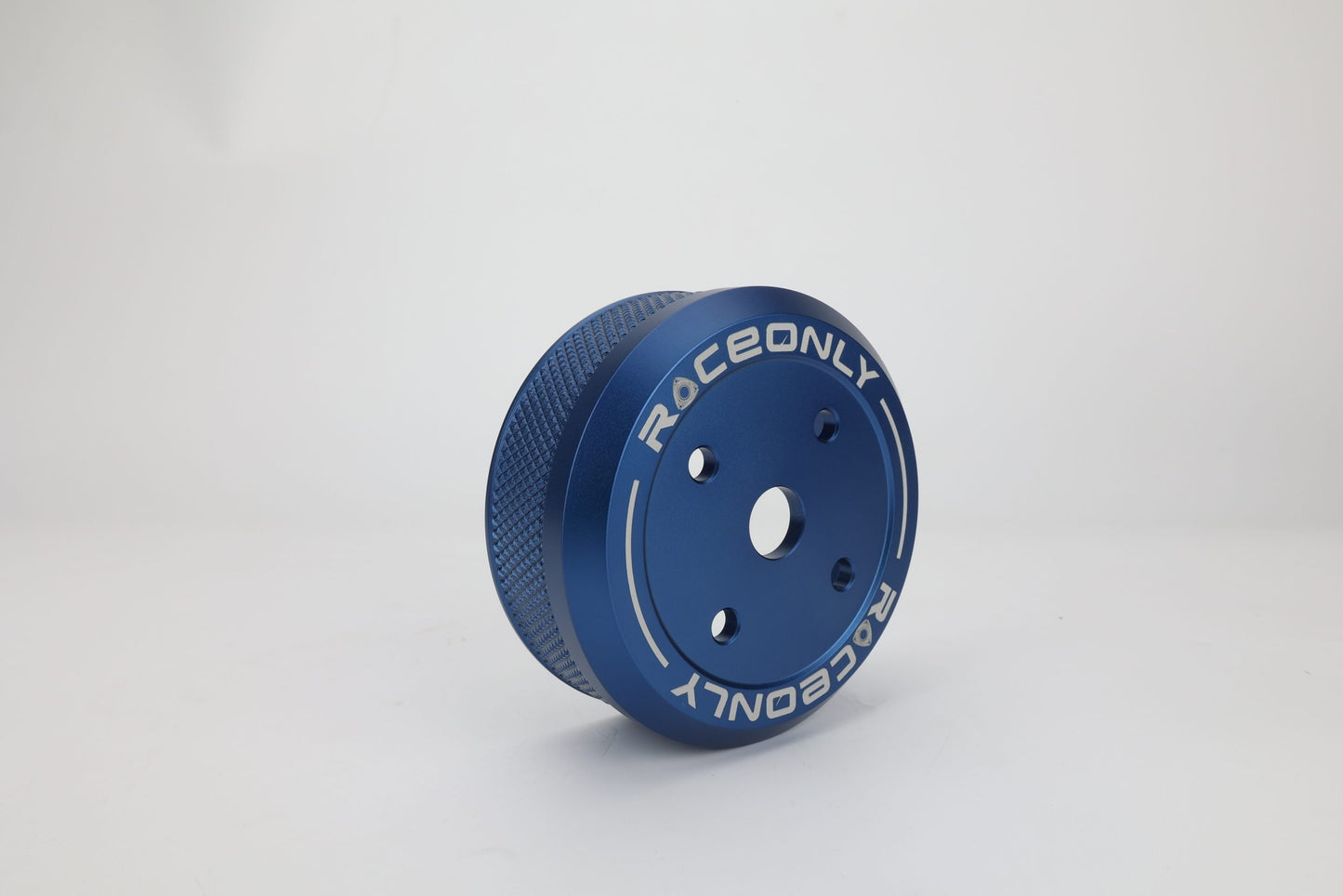

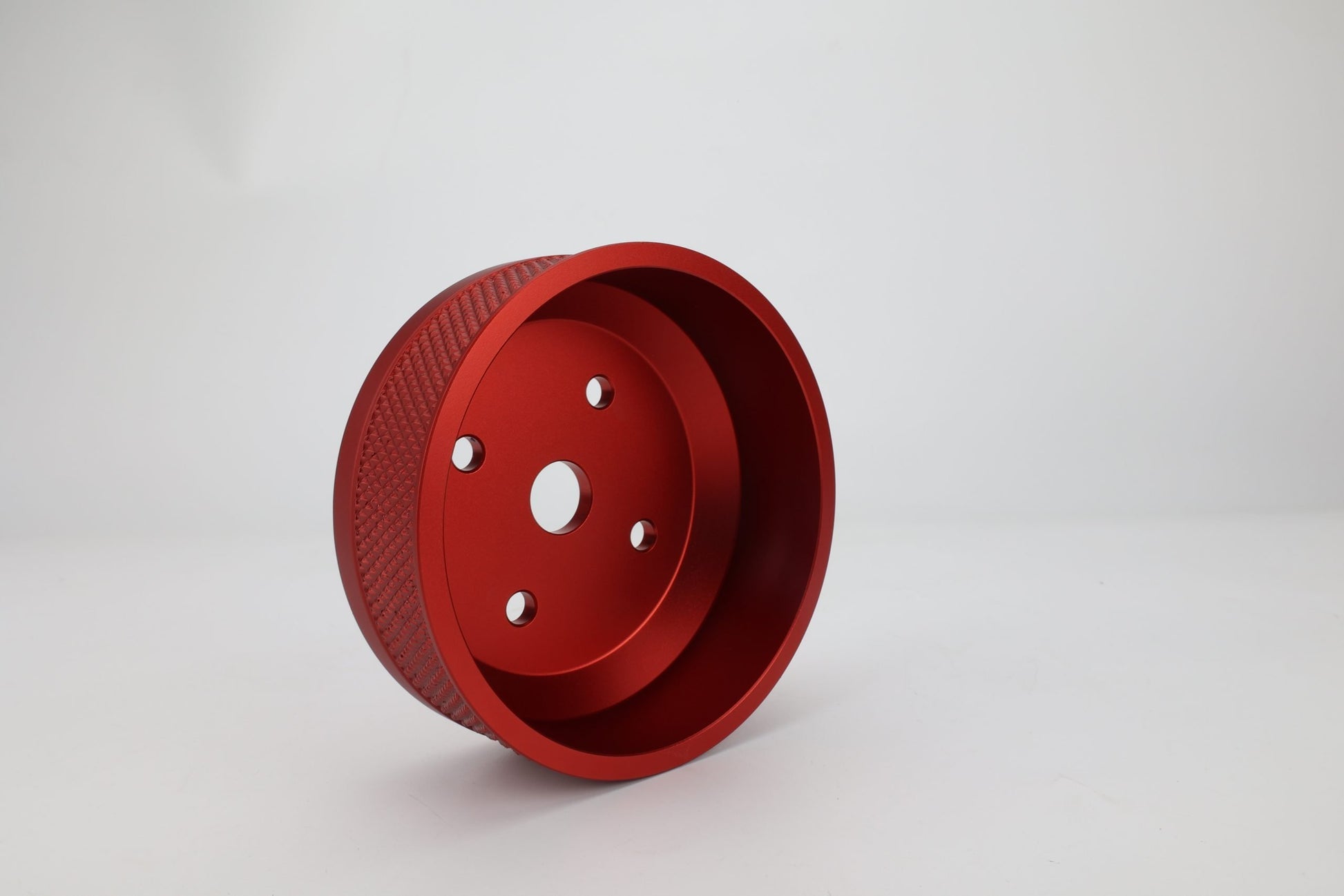

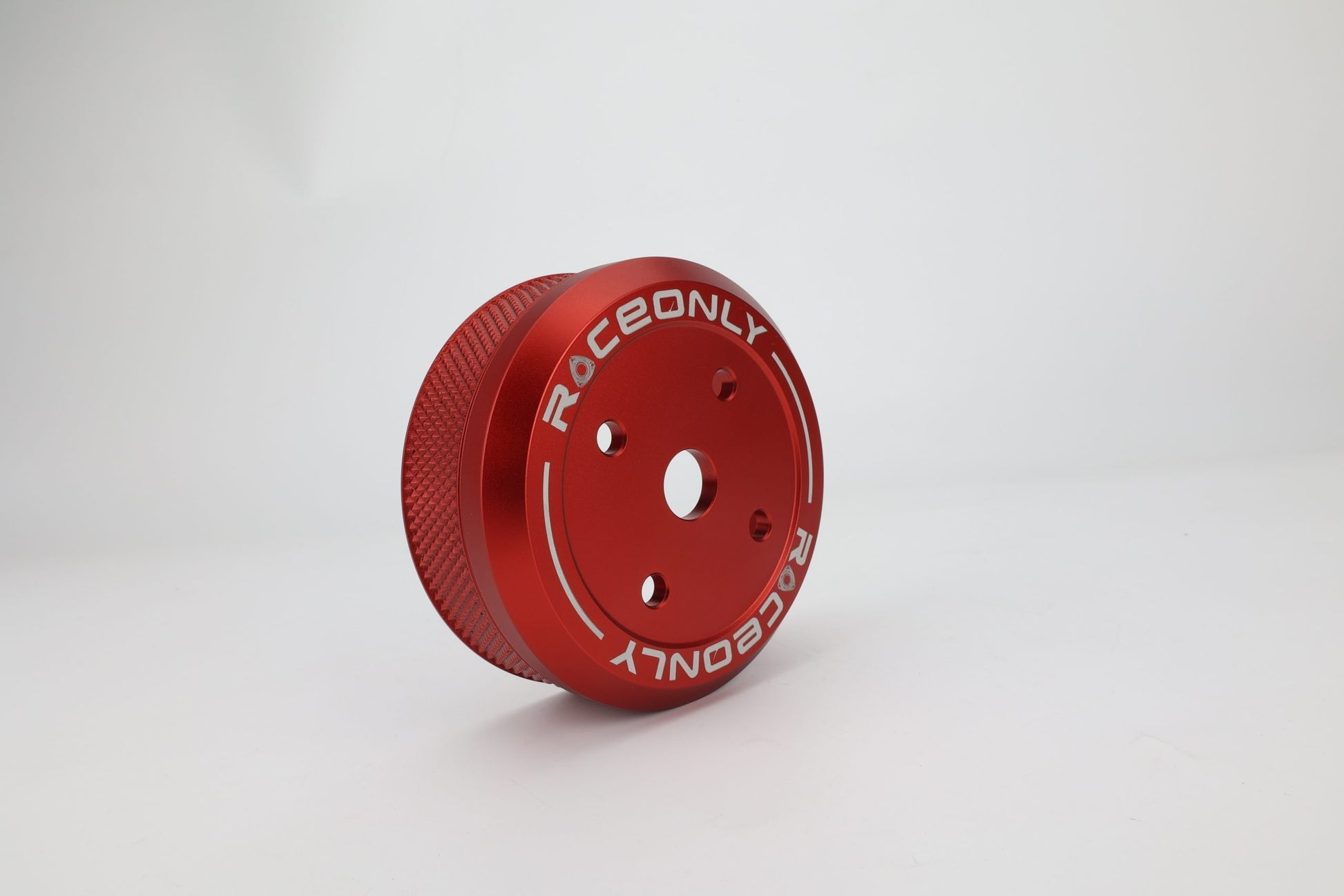

• Billet anodized pulley in your choice of color
• Textured-finish drive belt
• All installation hardware

Fitment

Designed for the Mazda FD3S RX-7 (1993–2002) with the 13B-REW twin-turbocharged rotary engine. Compatible with both sequential twin-turbo and single-turbo converted builds.

Pair with the RaceOnly FD RX-7 Pulley Kit for a complete accessory drive overhaul, or browse the full RaceOnly collection at J-Spec Garage — every RaceOnly product available in the US, exclusively through J-Spec.
